|Key Word:||Vibrating Feeder||Production Name:||Vibrating Feeding Machine|
vibratory feeding machine,
disc sand feeder

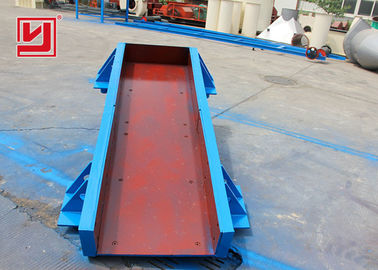

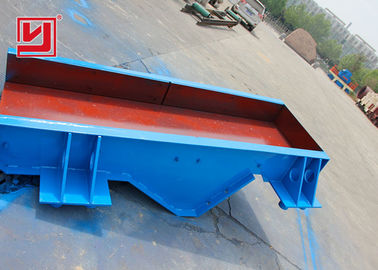

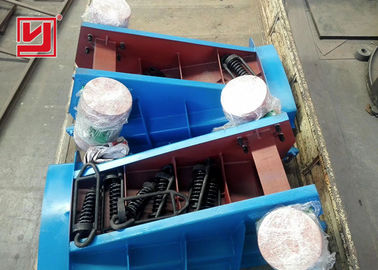

380V supply voltage good quality vibrating feeder vibrating feeding machine
This company produces the feeder for large capacity of heavy industrial design, mechanical vibration unit is also heavy two-axis structure, gear, oil lubrication,type eccentric block weight and impact Angle is adjustable, full series motors are all through the shaft bridge drive feeder, can also be equipped with frequency conversion control cabinet and install speed motor to control the feeding capacity.
The electromagnetic feeder is applicable to products which is easy-broken, easy-separated and coated with flavouring, such as: baked food, snack food, potato chips, frozen food, peanut, confectionery that are with high requirement of convey system.No breakage of single machine. When comparing with common vibratory conveyor , the products’ breakage rate reduces about 50% and seasoning loss rate reduces 70%.Dynamic distributions of product at each convey point, multi-conveyor linkage for long distance transportation, multi-conveyor synchronization and in-phase transmission.
When the power is on, the electric current passes through the excitation coils, which creates a magnetic field. The magnetic force changes into vibratingforce, which forces the feeding trough body to make simple harmonic vibration or similar to simple harmonic vibration in a certain direction. When the acceleration of its vibration achieves some certain value, the materials will make continuous and small throws or slides along the transmission direction in the feeding trough body, which causes the forward motion and transmission of the materials.
|Matching control box model||
Motor Vibrating Feeder is widely used in metallurgy, coal, electronics, machinery, chemical industry, building materials, light industry, food and other industrial and mining enterprises, in the production process, for the massive, granular and powdery materials from the storage silo or hopper quantitative continuously and evenly to the receiving device. Compared with other feeding device has the following characteristics:
(1) the use of electrical control thyristor half wave rectifier circuit. Can be stepless adjustment of the feed rate, and can be used for automatic control in the production process, production automation.
(2) the electromagnetic vibration feeder no rotating parts, no need of lubrication, simple structure, convenient maintenance.
(3) the material in micro projectile motion, groove wear small,
(4) the electromagnetic vibration feeder trough alloy steel, can be used for conveying high temperature, wear and corrosion of materials etc.
The actual capacity is greater than or less than the calculated capacity, productivity conversion according to the actual material capacity.
Particle size of less than 1mm material conveying speed decreased and water content more than 10% wet sticky materials can not be normal delivery, material thickness exceeds a certain value, will hinder the normal feeding, recommended H= (1/3~1/4) slot.
For special requirements, special specifications, special design and manufacture can I plant.
