Payment & Shipping Terms:
|Evaporation Capacity Of Moisture:||900kg/h||Warranty:||12months|

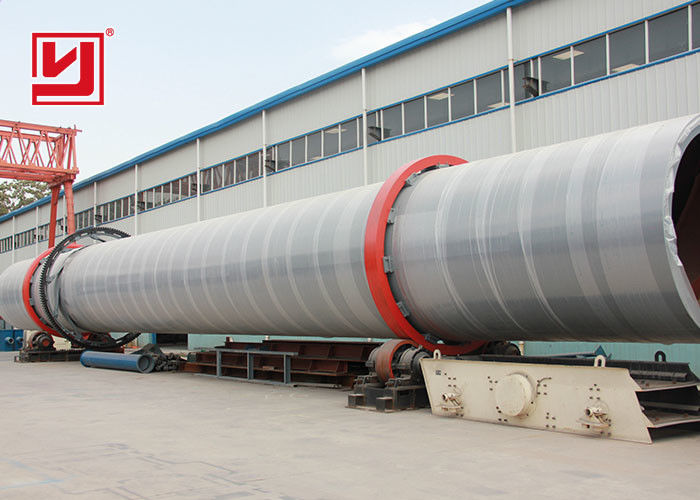

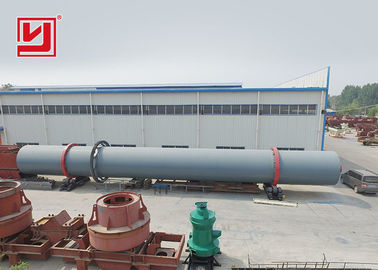

rotary drum dryer machine,
rotary drying equipment
Bean dregs (soybean curb residue) is a kind of bound water, large oil-based materials, water is not easily to remove. We developed a complete equipment of dehydration drying equipment for bean dregs (soybean curb residue). Bean dregs was dehydrated through high pressure, most of the water is lost in this way just in a minute, then the bean dregs enter into the dryer. Bean dregs and the dry fresh hot air moving in the opposite direction under the effect of a special scraping wings (pusher plate) and dry-hot wind. This process is a little long, the temperature is relatively low and the material is running slowly. The dryer is a downstream drying and the outlet temperature is only 40°C, the whole drying process can fully use the thermal energy and the bean dregs even heated so the toasted bean dregs can have a good color, no burning material and low consumption.

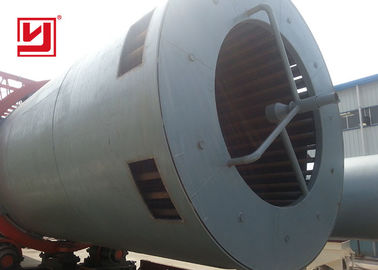

Bean dregs dryer consists of the heat source, feeding machine, rotary drum, discharging machine, induced draft fan, discharge devices, and distribution cabinet. The wet material is put into the dryer after dehydration, the material can disperse evenly and contact fully with the hot air in the dryer through the stirring of the plate which is in the roller, thus quicken the speed of drying, heat transferring and mass transferring. In the process of drying, the material can be sent out by the star unloading valve which is in the other end of the dryer under the action of the gradient plate and the hot mass. The technological and all equipments' parameter, structure of the production line are being careful analysis and verified by the experiment of drying the bean dregs, we fully take into account the large moisture content, high protein levels, big viscous and adopted a series of unique original technology to solve these problem to ensure a perfect drying results.
1. High degree of mechanization, large production capacity, and continuous option;
2. Simple and excellent structure, material running smoothly through the cylinder, operating convenience;
3. Less mechanical failure, low maintain charge, and power consumption;
4. Uniformity of drying product is good;
5. Drying production line using a special scattered installations to ensure the dryer's drying effect;
6. Use innovative and unique sealing device, and sophisticated keep-warm system;
7. Reduce the coal consumption of the system effectively;
8. Whole system holds a good performance of sealing;
9. With complete dust removal equipment;
10. No dust spilling;
11. With good operating environment;
12. Whole drying system uses electric centralized control, auto-control of temperature for hot air, high automation and convenient operation;
13. Can join in crushing, mixing, granulating, packing, and other follow-up steps after drying to produce the finished product of bean dregs particle feed.
We can help optimize the drying process according to the property of different materials, production scale, application requirements, cost control, automation level and site condition
|Quantity delivered of feed screw||≥800kg/h||≥1200kg/h||≥1800kg/h||≥3000kg/h|
|Evaporation capacity of moisture||350kg/h||650kg/h||900kg/h||1300kg/h|
|Rotate speed and power of the rotary drum||3-4rmp,4kw||3-4rmp,5.5kw||3-4rmp,10kw||3-4rmp,15.5kw|
|Rotate speed and power of the crush axis||150-250rmp,3kw||150-250rmp,4kw||150-250rmp,4kw||150-250rmp,5.5kw|
|Power of induced draft fan||7.5kw||11kw||15kw||18.5kw|
|Coal consumption(standard coal)||≤70kg/h||≤110kg/h||≤170kg/h||≤220kg/h|
|Height of the plant||≥3.8m||≥4.2m||5.5m||≥5.5m|
|Weight of the dryer||5.5T||8.5T||15.5T||23.5T|

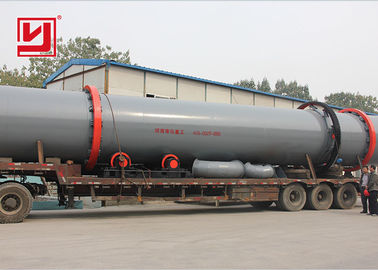

Packing and shipping
1.By railway to Mid Asia,Russia,Belaus and so on.
2.By sea to the rest countries.
3.Stnadard export packing no damage to the machines and containers
* Free for design.
* Sample testing support.
* View our Factory.
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
