|Drum Diameter:||1400mm||Drum Length:||16000mm|

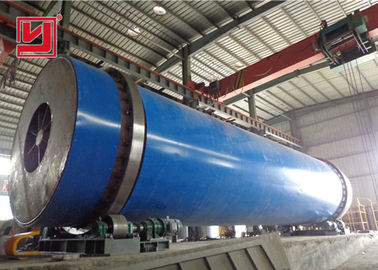

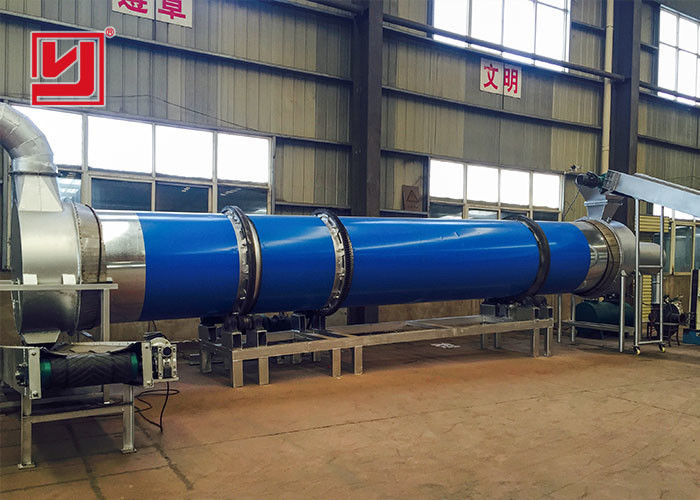

rotary drum dryer machine,
rotary drying equipment
Cassava dregs (slag cassava, sweet potato residue, potato waste, and more) by product of starch factory, alcohol plant, and more. It contain a kind of internal moisture and high viscosity so it is easily to stick to the wall, cake and clog. Can dry the high moisture content of all kinds of cassava dregs under 12%.
This equipment have national patent technology, it has special thermoregulation, material rasing, material guiding, whisking and other devices, which are effectively avoiding to stick to the wall and clog, and more. Therefor the material has a good color, high quality, this device is energy-saving, environment protected, new and old customers are well received.

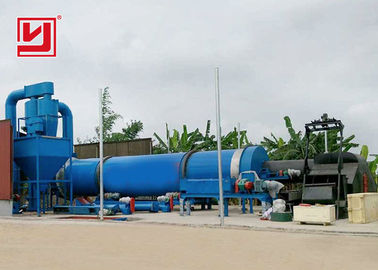

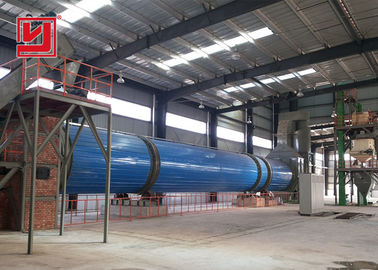

Cassava dregs dryer consists of the heat source, feeding machine, rotary drum, discharging machine, induced draft fan, discharge devices, and distribution cabinet. The wet material is put into the dryer after dehydration, the material can disperse evenly and contact fully with the hot air in the dryer through the stirring of the plate which is in the roller, thus quicken the speed of drying, heat and mass transferring. In the process of drying, the material can be sent out by the star unloading valve which is in the other end of the dryer under the action of the gradient plate and the hot mass.
The technological and all equipments' parameter, structure of the production line are being careful analysis and verified by the experiment of drying the bean dregs, we fully take into account the large moisture content, high protein levels, big viscous and adopted a series of unique original technology to solve these problem to ensure a perfect drying results.
Cassava dregs Dryer with Paddle Stirring Features:
1) Smart control & One-step operation. The operation parameters is under automatic control to ensure the best running condition and moisture stability of dry materials.
2) Impurities self-removal. Iron dust and other impurities are cleaned and would not enter the following process.
3) The insulation effect of drum is as high as 70% (35% for traditional product), raising the heat efficiency by 30%.
4) Four-wheel drive, stable and reliable.
5) Save 50% space and civil investment compared to traditional dryers.
6) Innovative flights design. Efficient flights combination would bring better process control , thermal distribution, and heat efficiency. The temperature of exhaust gas is lower than 50℃.
7) Convenient variable frequency-control systems. Customers could change the material flow rate and product moisture based on their needs.
8) Environmental and safe. Modular configuration of dust collection and purification systems .
9) More choice for innovative air furnace with high efficiency, convenient manipulation and energy control, which could reduce 30% energy cost and 20% electric cost.
|Plant area (L×W×H)||5×15×3.7||5×20×3.7||5×25×3.7||6×35×5|
Fully tested before delivery
We offer you the early planing of the project,the best process flow design,choose the best appropriate equipment model to design products according to your special needs.
All products have to pass strict inspection with the drawings and process flow according to the contract before
they go out.We assigned the technicians to the producing spot to provide installation guide, testing and training.
To establish good business relationship,we adopt periodical visit to the users.We could give you the definite reply during 24 hours when the users meet some problems in the producing process.
