|Output Moisture:||≤1%||Max Feed-in Temperature:||750-900℃|
|Drum Diameter:||2200mm||Drum Length:||18000mm|
rotary drying equipment,
roller dryer machine
High Efficiency Cheap Price Fly Ash Single Rotary Dryer Machine
The material inside the rotary dryer has heat exchange with the high temperature flue gas through shell rotating and material lifting by lifter. The rotary dryer has many good characters like: high efficiency, big capacity, high running rate, saving energy, easy for maintenance, long working life. Variety angle of the lifter will increase the heating exchange rate and short drying time. That is widely used for drying lay, slag, fly ash & etc.
Fly Ash Drying System is custom-designed and manufactured to suit the customer’s individual project needs. These drying systems consist of a correctly sized drum with a burner. The burner is mounted to a combustion chamber. Fly Ash Drying Systems are designed specifically to dry fly ash, making the material easy to transport, store and handle.
1. In the coal fired power plant, the fly ash has two discharging style: one is dry discharging style, the other is wet discharging style.
2. In the rapidly developing cement industry, as the cement production mixing materials, the dry fly ash market is rather considerable. The physicochemical properties of wet fly ash are basicly same as the dry fly ash, but as there is big moisture content (maximum is amount to 45%), the wet fly ash can not meet the requirements of cement production. As a result, the wet fly ash can only be piled up as waste, and occupy many storage place, even pollutes the environment.
3 Then, how to dry the wet fly ash ?
After years' research, Yuhong Machinery developed one new type fly ash dryer. It has the advantages of low energy consumption, simple drying process, large drying capacity, etc. Fly ash dryer from yuhong Machinery can dry the wet fly ash from moisture content 45% to about 8% in large quantity directly.

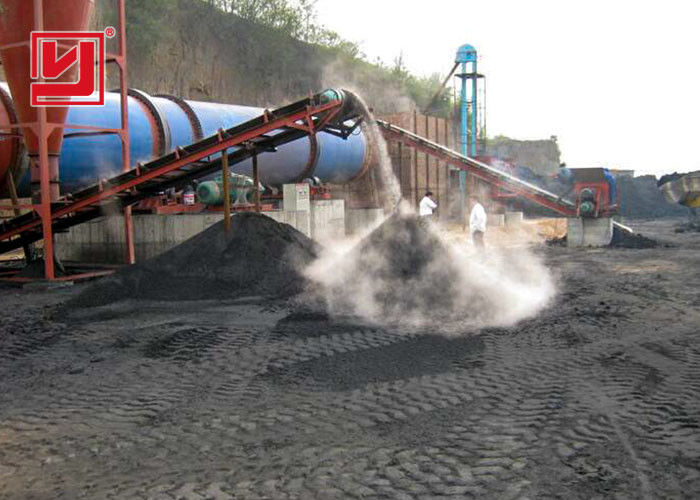

Fly ash is fed into the rotary dryer. After passing through the dryer, the dried material is discharged to a transfer conveyor for further sorting and separation. The vapor from the process is pulled through a cyclone that is specifically designed to deal with the fine dust, as well as a high-temperature baghouse which removes all fine particulates from the vapor stream.
|Drum volume (m3)||18.84||31.89||56.26||81.38||118|
|Rotating speed (rpm)||4-10||4-10||4-10||4-10||4-10|
|Input moisture (%)||8-20||8-20||8-20||8-20||8-20|
|Output moisture (%)||≤1||≤1||≤1||≤1||≤1|
|Max. input temperature (℃)||750-900℃||750-900℃||750-900℃||750-900℃||750-900℃|
|Capacity (t/h)-Fly ash||8-12||18-25||30-35||40-45||50-58|
|Motor power (kw)||5.5×2||7.5×2||7.5×4||11x4||15×4|
|Machine weight (t)||25||32||40||56||76|
Yuhong Company will make proper packing for different machine, which is suitable for sea transport and land transport.
Main part will be in nude. Small parts will be packed in wooden box.
1. Yuhong Company can afford transport directly to destination port or destination place.
2. Customer can arrange both land transport and sea transport by themselves if convenient.
