|Application:||Gold Ore,silver Ore,iron Ore,lead Ore,zine Ore,antimony Ore||Applicable Industries:||Manufacturing Plant, Machinery Repair Shops, Energy & Mining|
|Table Diamension:||4450x1855x1546mm||Max feeding size:||2mm|
|Feeding In Materails Capacity:||30-60tpd||Feeding In Materails Concentration:||25-30%|
|Frequency:||15-48F||Water For Cleaning Table:||1-3tph|
gold grinding machine,
gold grinding mill

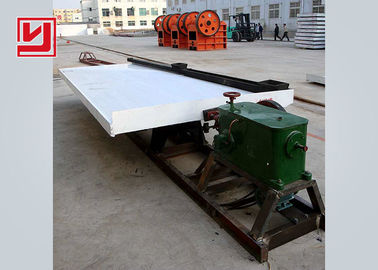

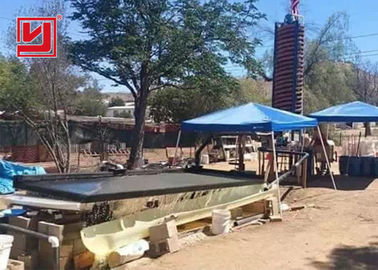

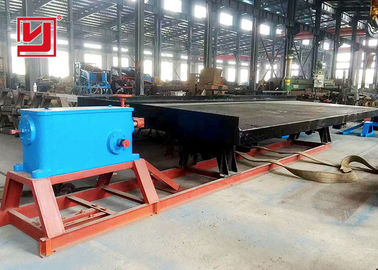

Low price high recovery 6s shaking table for Gold, Chrome, Manganese
Shaking table is one of most commonly used mineral beneficiation equipment,although the processing ability based on unit area of shaking table is low,but its effective particles size sorting could be up to 0.037mm limit,the interval grill of table surface is very clear and machine operating is easy.Shaking table could continuously sort concentrate ore,second-grade ore and tailings,it is very important ore sorting equipment.Shaking table is made of machine head,motor,adjusting gradient device,bed,bunker,water tank,rifle bar and lubrication system.
Shaking table which is also called table concentrator, its a gravity separation device for fine minerals . 6s Shaking table is effective in processing precious and base metal, rare metal and non-metallic minerals, widely used in separation of Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum etc. Our shaking table can produce mob type, the coarse ore deck is designed for recovering particles size from 0.5 mm to 2 mm; the fine sand deck is designed for recovering fine particles in the range of 0.074 mm to 0.5 mm; the slime deck is designed for recovering super extremely fine particles in the range of 0.037 mm to 0.074 mm.
Shaking table is to use the combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle, to allow loose layering of ores on the bed surface and fan-shaped zoning, then different products can be separated.
1. Great ratio of high-grade ore, high separating efficiency, easy to operate and convenient to adjust the stroke.
2. Strong wear resistance of the working surface.
3. Anti-chemical corrosion, acid and alkali.
4. Strong resistance to harsh environment.
|Model||Bed surface for coarse sand||Bed surface for fine sand||Bed surface for slurry|
|Transmissonend width (mm)||1855||1855||1855|
|Concentrate ore width (mm)||1546||1546||1546|
|Max feeding size (mm)||2||0.5||0.15|
|Feeding volume (t/d)||30-60||10-20||15-25|
|Feeding density (%)||25-30||20-25||15-25|
|Cleaning Bad surfance
water consumption (t/d)
|Bed transverse gradient (°)||2.5-4.5||1.5-3.5||1-2|
|Bed longitudinal gradient (%)||1.4||0.92||----|
|Bed pinchout angle (°)||32-42||40||42|
|Benefication area (㎡)||7.6||7.6||7.6|
|Bed end shape||Rectangle||Sawtooth||Triangle|
|Transmission device||Eccentric link mechanism|
