|Name:||Rotary Drum Dryer||Inner Diameter Of Cylinder(mm):||1650mm|
|Tube Length (mm):||16500mm||Speed:||9.79(r/min)|

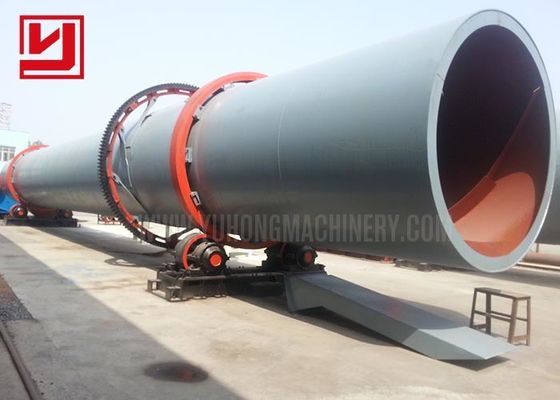

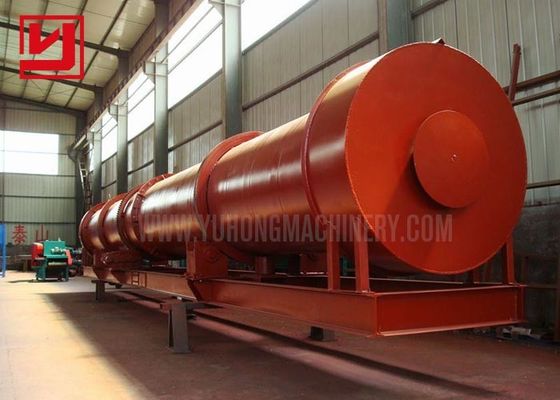

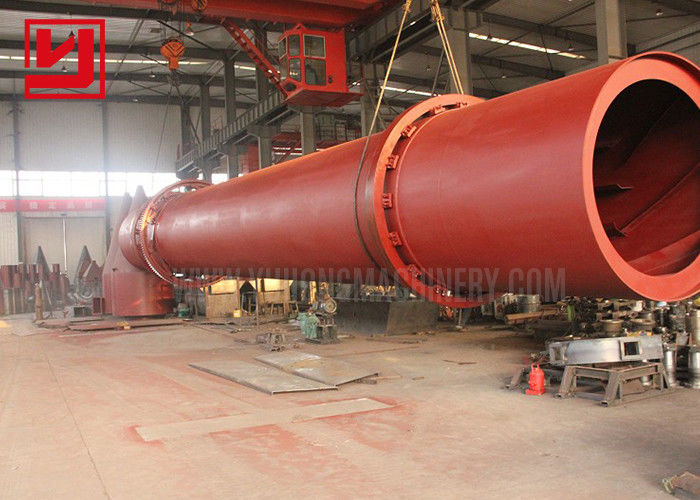

Single cylinder Rotary dryer is widely used for drying slag limestone,coal powder,slag,clay,etc.The dryer can also be used in building materials,metallurgy,chemical, and cement industry.Rotary Dryer mainly consists of dryer body,raw material feeding plate,driving and supporting device,seal ring,etc.Dryer can be generally divided into four types,they are rotary dryer,triple-drum dryer,indirect heat transfer dryer,vertical dryer.Different kind of dryer has its own characters and advantages,the specific choice of a special dryer depends on different elements.
1. Yuhong coal dryer, with strong overload capacity, large quantity, less fuel consumption, low dry cost; Applies the downstream drying method, flue gas and wet material in the dryer on one side of the dryer, can take advantage of the high temperature gas to achieve high evaporative force, low temperature dryer output, with high efficiency thermal;
2. Can change the working parameters according to different material properties, the material in the drying cylinder body can form a durable curtain fabric and more convenient heat exchange;
3. New type of feeding and unloading device, preventing food blockage of drum dryers, uninterrupted and uneven return phenomenon, reduce the load of dust collection system;
4. A type of internal structure, to enhance the cleaning effect of dispersed material and thermal conductivity, remove the cylinder in moisture, has more flexible adaptation of adhesion and moisture of materials;
5. In the new type of coal slurry drying device to achieve "zero thrust", greatly reducing the wear of the wheels, the cylinder has smooth and reliable operation;
6. The dryer acquires a "wheel self-adjusting device", makes the wheel and roller ring with linear contact, thereby greatly reducing wear and energy loss; Adopt the unique technology of large carbon retardation absorption, ensure the uniformity of coal drying.
The quality of building materials continues to increase, energy and raw material consumption are declining year by year, new types of new building materials continue to emerge, and building materials are constantly upgraded. As a result, the requirements for the processing technology of building materials have been continuously improved. For example, the control requirements for impurities and moisture content of raw materials have been continuously improved. Only in this way can products with guaranteed quality be produced.
1.Materials are sent to the hopper of rotary dryer by belt conveyor or bucket elevator;
2.Materials enter the barrel installed with slope to horizontal line from the higher side,and hot air enters the barrel from the lower side,and the materials and hot air mix together;
3.Materials go to the lower side by gravity when the barrel is rotating;
4.Lifters on the inner side of barrel lift materials up and down in order to make materials and hot air mix completely,which is designed to improve the producing efficiency of rotary dryer.
Q1: Why choose YuHong machinery?
A1: 1. Up-to-date design, CAD calculation and simulation;
2. ISO,BV,SGS,CE quapty control manufacturing;
3. Over 30 years experience, export to over 50 countries;
4. Highest standard to suit operators' use;
5. World class quality at affordable price.
Remarks: The price will depend on different models. Reply message ,you will get 5% discount price.
Q2: What are the requirements for rotary dryer material?
A2: Our Yuhong has a high standard on choosing material of rotary dryer.
1.Using very high grade steel plate (i.e. Q235, Q345) on structuring part;
2. Using wear-resistant steel (i.e. ZG35, ZGMn13, 65Mn, 35CrMo, ZG60Si2CrA) on quick-wear parts;
3. The motor, reducer, bearing, belt, bolts are Chinese top 5 brands;
4. Metallurgy performance must be considered during designing, cutting, bending, fitting&welding.
Q3: What information do we need to provide you the reasonable model and best quotation?
A3: 1. What is the raw material?
2.Raw material maximum feeding size (mm or mesh)?
3. Final products size (mm or mesh) and usage?
4. What is the capacity per hour?
Company and factory
HENAN YUHONG HEAVY MACHINERY CO., LTD.
Henan Yuhong Heavy Machinery Co.,LTD is a joint-stock mining machinery manufacturing enterprise integrated in scientific research,prodcution and marketing.our main products include five series ,they are the Crushing equipment ,Beneficiation equipment,Grinding Powder equipment ,Drying equipment ,Kilning equipment.YUHONG GROUP set off from "the customer for this " angle ,put self's whole heart to be that the customer provides the valuable service pattern,the effort using up 100% satisfies different customer product need.
Packing and shipping
We can not only provide good quality sand making machine, but also provide the best service for our clients. The series of professional technology services will make you have an excellent product experience.
(1) The advice of model choice.
(2) Design and manufacture machines according to customer's special requirements
(3) The company is free of charge to the user on-site engineering and technical personnel planning site for the user to design the best processes and program
After-sale services :
(1) Arrange technicians to go to the site to guide installation
(2) If your machine is out of warranty period, you can go to the Nile's overseas office to buy spare parts.
(4) complete sets of equipment installed, 1-2 full-time technical staff to stay free of charge to help customers on-site production of 1 month, until the user' satisfaction.
