|Condition:||New||Key Word:||Ultrafine Powder Mill|
grinding mill equipment,
ultra fine grinding mill

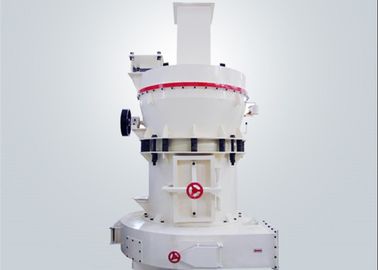

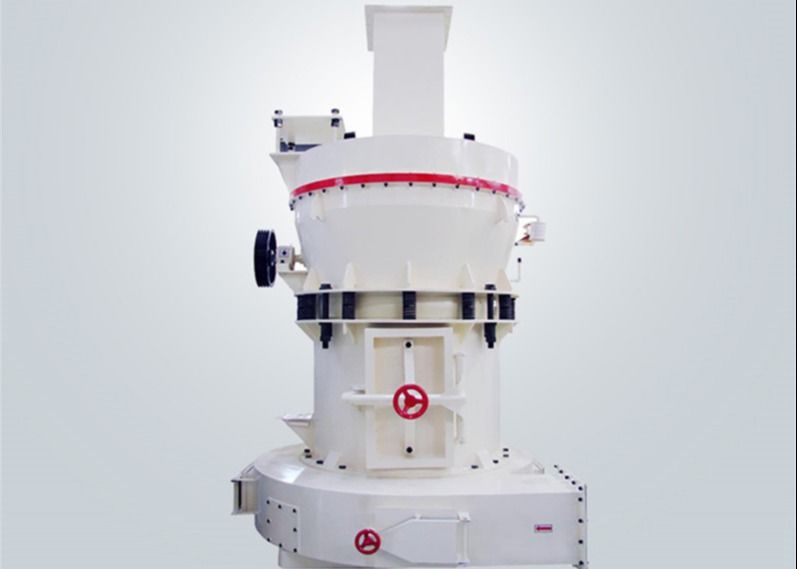

3.4 - 4.6t / h ultrafine powder mill grinding machine from manufactory
High Pressure Suspension mill is mainly made up of the mainframe separator blower finished powder cyclone collector bag filter and connecting pipes etc..

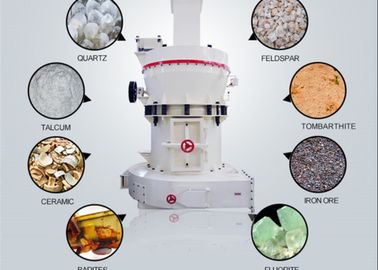

Processed Materials: Limestone, calcite, barite, dolomite, potassium feldspar, bentonite, medical stone, rock phosphate, manganese ore, iron ore, quartz, active carbon, carbon black, ceramic, coal, etc..
Applications: Cement, coal , power plant desulfurization, metallurgy, chemical industry, non-metallic mineral, construction material, ceramics.
1. Compared with other mills its capacity increases by 10%-20% under the same power condition and compression force of rollers to material improve 800-1200kgf under the force of high-pressure spring.
2. Size of final product can be 0.613mm (30mesh) –0.033mm (425mesh). Some can reach the fineness of 0.013mm (1000 mesh).
3. High Pressure Suspension Mill meets the requirement of national dust-dump standard.
4. The separator can be adjusted very easily.
5. The multi-class seals are adopted to keep the grinding equipment tightly closed.
When entering grinding chamber the raw materials are shoveled up by the shovels and grinded between the rollers and ring; the materials after grinding are brought into the separator along with the air from the blower and the qualified fine powder became final products and come into the cyclone powder collector the other unqualified powder fall down to be re-grinded. The circular air returns back to the blower that the above process will be repeated and the remaining air enters the bag filter in order to protect the environment.
Fineness of the

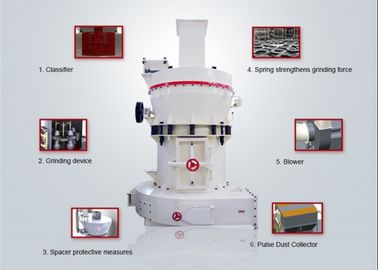

1. Classifier: Size of final product can be 0.613mm (30mesh) –0.033mm (425mesh). Some can reach the fineness of 0.013mm (1000 mesh).
2. Grinding device: The multi-class seals are adopted to keep the grinding equipment tightly closed.
3. Spacer protective measures: Mainframe is under protection, easy to be replaced, maintenance cost is reduced.
4. Spring strengthens grinding force: Compared with other mills, its capacity increases by 10%-20% under the same powder condition. compression force of rollers to material improve 800-1200kgf under the force of high-pressure spring.
5. Blower: Enhancing fan configuration and frequency conversion speed can be based on features of different materials, fineness, production requirements so as to efficiently adjust the air volum, achieve the best running state and reduce the energy consumption.
6. Pulse dust collector: Dust removal effect reaches the national powder emission standards; According to customers' actual demand, pulse bag filter can also be used, thus achieving rapidly automatic dust removal, and dust removal efficiency is higher.
