Payment & Shipping Terms:
|Wheel Size:||Φ3000×1600||Rotary Speed:||0.8-1.5r/min|
|Max Feeding Size:||10mm||Capacity:||50-120t/h|
|Motor Power:||11-15kw||Color:||As Requirement|
sand maker machine,
sand recycling machine
Small Size Wheel Bucket Mining Ore Rock Garnet Aggregate Washing Machine

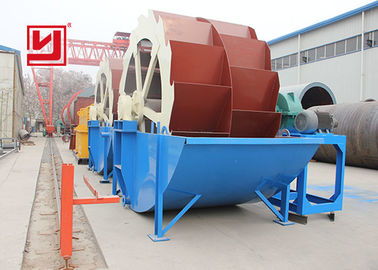

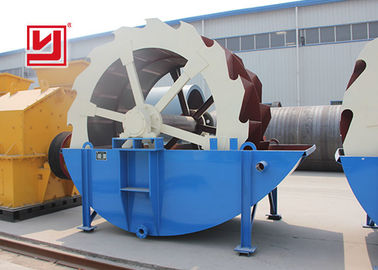

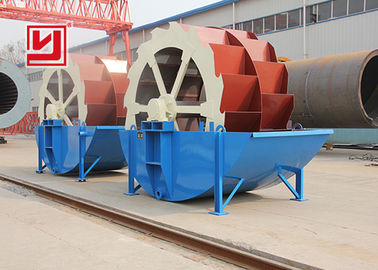

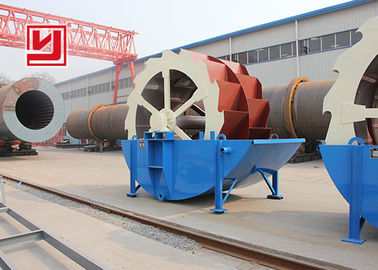

Sand Washer Introduction
XSD Series high efficient sand washer is the essential sand washer equipment, which is used with the sand maker. For improving the quality of the sand, it can wash tiny stone powder and impurity from the mixing sand made by sand maker. According to the reality of the sand and stone industries in our country, and adopting the advanced technologies, this high efficiency sand washing equipment occurred. It is mainly used in washing, classifying and dewatering sand in the areas of building site, sandstone plant, hydropower station, concrete of dam building site, concrete precast yard, glass plant, quartz sand and sand for refilling oil well.
Sand Washer Features
1. Simple structure, stable performance. Long service life of the bearings.
2. Little loss for medium-sized or fine sand and stone powder.
3. Parts constructed for durability. Easy maintenance.
4. Longer working life, applicable to multiple working environments.
Sand Washer Working Principle
The electric motor runs slowly with the impeller after decelerated by the belt, decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder, rolls with the impeller, and grinds each other. The impurity covering the sand is washing away. At the same time, add more water, the strong water flow will take away waste and some low-weight wastes from washing launder. Through the above process, the washing function is finished.
|Wheel size (mm)||Φ2600×1000||Φ2800×1600||Φ3000×1600||Φ3620×2000|
|Rotary speed (r/min)||1-2||1-2||0.8-1.5||0.8-1.2|
|Max feeding size (mm)||≤10||≤10||≤10||≤10|
|Motor power (kw)||5.5||7.5-11||11-15||15-18.5|
|Overall dimension (mm)||3255×1982×2690||3540×3000×2880||3845×3000×3080||4456×3479×3688|
