Product Details:
Payment & Shipping Terms:
|
| Model: | RBYL2500 | Capacity: | 15-18T/H |
|---|---|---|---|
| Main Motor: | 3.0KW | Presser: | ≥0.5 Mpa |
| Overall Size: | 4920*2978*2350mm | Water Consumption: | 0.3 |
| High Light: | 18tph Plate Frame Filter Press,Sewage Plate Frame Filter Press,18tph plate and frame press |
||
Description
The structure design of the belt press dehydrator has advanced the technical level of the international counterparts. It effectively solves the problems of dehydration of plant wastes and slag materials, and can greatly reduce the moisture content of the materials.
Especially suitable for long fiber slags, such as: cassava residue, soya residue, beer dregs, chicken manure, food waste, coco peat, palm oil residue and so on. The equipment has a high degree of automation, continuous production, large processing capacity, low moisture content of the slag cake after dehydration. Low energy consumption, low operating costs, easy operation and maintenance.
Product Features
Sludge dewatering machine belt filter press application:
It has been widely used in papermaking, textile printing and dyeing, electroplating, petrochemical, tanning, food and other industrial wastewater and sludge dewatering in urban sewage treatment. It is also widely used in the dewatering of tailings in stone, ceramic tile, coal, mining and other industries.
Details Images

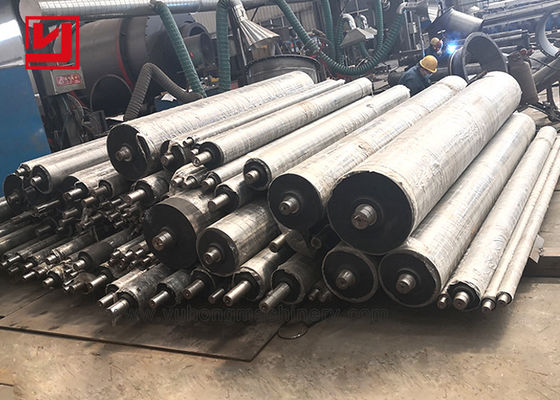

Various types of rollers
There are many types of rollers used in belt filter presses, including drive rollers, squeeze rollers, filter cloth redirecting rollers, correction rollers and tension rollers.
Bearing
Its main function is to support the mechanical rotating body, reduce the friction coefficient during its movement, and ensure its rotation accuracy.
Filter cloth correction device
The filter cloth correction device is composed of a correction airbag and a correction mechanical valve. When the deviation of the filter cloth hits the mechanical valve, the corresponding airbag expands, causing the correction roller to swing forward or backward, so as to achieve the purpose of correction.
Filter cloth
Filter cloth can be customized according to the characteristics of the slurry. Material is divided into PP, PET and so on. The weaving process is divided into monofilament, multifilament and non-woven fabric.
Dehydration effect table of common materials
|
Material |
Material Moisture(%) |
Filter Cake Moisture(%) |
Capacity(m3/h) |
|
Municipal sewage plant sludge |
96-98 |
75-80 |
5-6 |
|
Waterworks Sludge |
87-98 |
75-80 |
4-5 |
|
Paper mill sludge |
96-98 |
75-80 |
5-6 |
|
Sludge from printing and dyeing plant |
97-98 |
80-82 |
4-5 |
| Steel plant sludge | 70-72 | 17-19 | 6-8 |
| Soda plant salt mud | 77-80 | 55-58 | 6-8 |
| Acidic wastewater and sludge | 65-85 | 35-50 | 6-8 |
| Organic chemical plant sludge | 95-98 | 50-55 | 5-6 |
| Refinery sludge | 97-98 | 75-80 | 4-5 |
OUR SERVICE
01. Detailed installation manual and maintenance guideline are provided with the equipment.
02. Technical training and site-commissioning are available for you.
03.Any equipment issue, we will stand by. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.
Company and factory
HENAN YUHONG HEAVY MACHINERY CO., LTD.
Henan Yuhong Heavy Machinery Co.,LTD is a joint-stock mining machinery manufacturing enterprise integrated in scientific research,prodcution and marketing.our main products include five series ,they are the Crushing equipment ,Beneficiation equipment,Grinding Powder equipment ,Drying equipment ,Kilning equipment.YUHONG GROUP set off from "the customer for this " angle ,put self's whole heart to be that the customer provides the valuable service pattern,the effort using up 100% satisfies different customer product need.
Packing and shipping
We have established a logistics department consisting of 10 engineers, which is responsible for packaging, loading and global overseas freight. We will make full preparations according to customers' packaging and transportation requirements. Make sure that the goods are delivered to customers safely and quickly.
