Name: | Rotary Drum Dryer | Capacity: | 10t/H |
---|---|---|---|
Inner Diameter Of Cylinder: | 2000mm | Tube Length: | 18000mm |
Speed: | 3.16 R/min | Motor Power: | 30 Kw |
High Light: | 2.0*18 Rotary Dryer Machine,10t/H Rotary Dryer Machine,10t/H rotating drum dryer |
Description

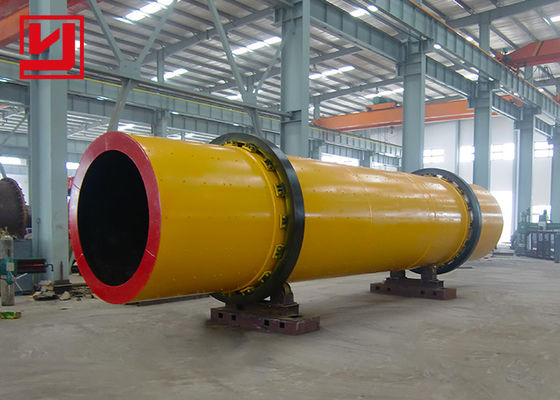

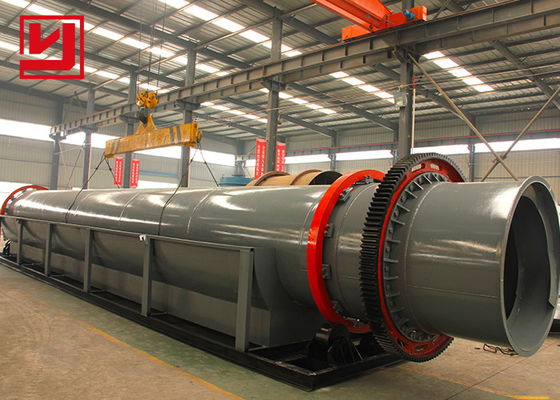

The raw material enter into lignite Rotary Drum Dryer by conveyor,at the start of the dryer have furnace,it will provide the heat for the Rotary Drum Dryer and the end of the Rotary Drum Dryer have fan,the fan absorb the heat enter into the dryer,inside the lignite dryer have negtive pressure,so the heat must enter into the lignite drying machine.

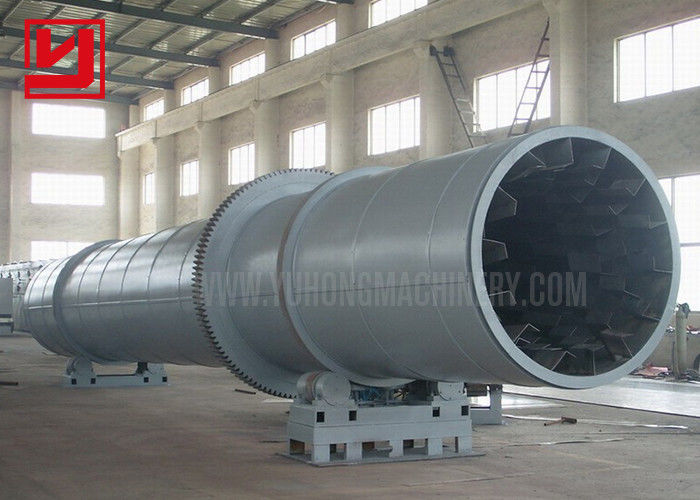

There have lifting plate,it will raise up the raw material,so that the heat and raw material will be totally contact inside the lignite drying machine.
The dried material will come out from the discharge machine.
Technical parameters
Spec |
Inner diameter of cylinder(mm) |
Tube length (mm) |
Sloup (°) |
Speed (r/min) |
Motor Power (Kw) |
Output (t/h) |
Inlet temperature (℃) |
G.W. (t) |
Φ1.5×14m | 1500 | 14000 | 2.5 | 3.4 | 15 | 1.8-4 | ≤700℃ | 19.6 |
Φ1.8×15m | 1800 | 15000 | 2.5 | 4.04 | 18.5 | 2.8-6.5 | 25 | |
Φ1.8×20m | 1800 | 20000 | 2.5 | 3.1 | 22 | 5-8 | 32.2 | |
Φ2.0×18m | 2000 | 18000 | 2.5 | 3.16 | 30 | 6-10 | 38.8 | |
Φ2.2×20m | 2200 | 20000 | 2.5 | 3.68 | 37 | 6.5-11 | 47 | |
Φ2.2×22m | 2200 | 22000 | 2.2 | 2.9 | 37 | 7-12 | 50 | |
Φ2.4×22m | 2400 | 22000 | 2.5 | 3.27 | 45 | 7.5-14 | 62 | |
Φ2.6×24m | 2600 | 24000 | 2.5 | 3.2 | 55 | 8-17 | 72.5 | |
Φ2.8×22m | 2800 | 22000 | 2.5 | 3.4 | 132 | 28-32 | 94 | |
Φ3.0×28m | 3000 | 28000 | 2.5 | 3.2 | 75 | 32-36 | 105 | |
Φ3.2×30m | 3200 | 30000 | 3-5 | 3.2 | 90 | 43-50 | 700-800℃ | 118 |
Φ3.6×32m | 3600 | 32000 | 3-5 | 3.0 | 160 | 60-76 | 143 | |
Φ4.0×36m | 4000 | 36000 | 3-5 | 3.0 | 200 | 82-90 | 189 | |
Φ4.6×42m | 4600 | 42000 | 3-5 | 3.0 | 280 | 100-110 | 290 |
Advantages
1. Yuhong coal dryer, with strong overload capacity, large quantity, less fuel consumption, low dry cost; Applies the downstream drying method, flue gas and wet material in the dryer on one side of the dryer, can take advantage of the high temperature gas to achieve high evaporative force, low temperature dryer output, with high efficiency thermal;
2. Can change the working parameters according to different material properties, the material in the drying cylinder body can form a durable curtain fabric and more convenient heat exchange;
3. New type of feeding and unloading device, preventing food blockage of drum dryers, uninterrupted and uneven return phenomenon, reduce the load of dust collection system;
4. A type of internal structure, to enhance the cleaning effect of dispersed material and thermal conductivity, remove the cylinder in moisture, has more flexible adaptation of adhesion and moisture of materials;
5. In the new type of coal slurry drying device to achieve "zero thrust", greatly reducing the wear of the wheels, the cylinder has smooth and reliable operation;
6. The dryer acquires a "wheel self-adjusting device", makes the wheel and roller ring with linear contact, thereby greatly reducing wear and energy loss; Adopt the unique technology of large carbon retardation absorption, ensure the uniformity of coal drying.
Application
Working principle
Materials are sent to hopper of rotary dryer by belt conveyor or bucket elevator, then enter the barrel installed with slope to horizontal line from the higher side, and hot air enters the barrel from the lower side, and then materials and hot air mix together. Materials go to thelower side by gravity when the barrel is rotating. Lifters on the inner side of barrel lift materials up and down in order to make materials and hot air mix completely, which is designed to improve the producing efficiency of rotary dryer
FAQ
Q1: Why choose YuHong machinery?
A1: 1. Up-to-date design, CAD calculation and simulation;
2. ISO,BV,SGS,CE quapty control manufacturing;
3. Over 30 years experience, export to over 50 countries;
4. Highest standard to suit operators' use;
5. World class quality at affordable price.
Remarks: The price will depend on different models. Reply message ,you will get 5% discount price.
Q2: What are the requirements for rotary dryer material?
A2: Our Yuhong has a high standard on choosing material of rotary dryer.
1.Using very high grade steel plate (i.e. Q235, Q345) on structuring part;
2. Using wear-resistant steel (i.e. ZG35, ZGMn13, 65Mn, 35CrMo, ZG60Si2CrA) on quick-wear parts;
3. The motor, reducer, bearing, belt, bolts are Chinese top 5 brands;
4. Metallurgy performance must be considered during designing, cutting, bending, fitting&welding.
Q3: What information do we need to provide you the reasonable model and best quotation?
A3: 1. What is the raw material?
2.Raw material maximum feeding size (mm or mesh)?
3. Final products size (mm or mesh) and usage?
4. What is the capacity per hour?
