Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Application: | Mining,construction,Quarry,metallurgy |
|---|---|---|---|
| Warranty: | 12 Months | Motor Type: | AC Motor |
| Color: | Customizable | Type: | HPC Hydraulic Cone Crusher |
| Usage: | Crushing Machine | Keyword: | Hydraulic Cone Crusher |
| High Light: | cone crusher machine,stone crusher machine |
||

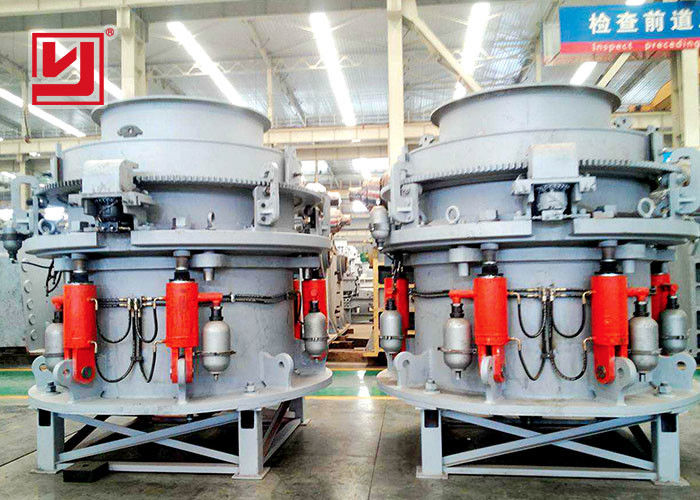

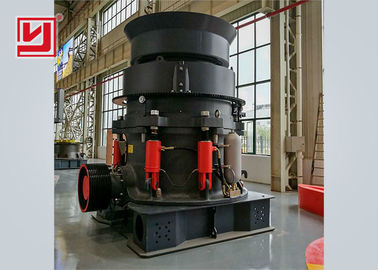

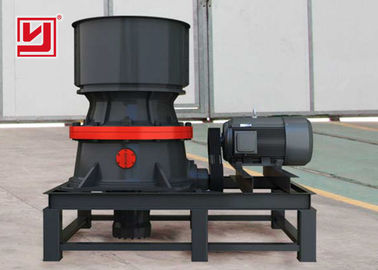

220mm inlet size hydraulic cone crusher breaking machine ore crusher
Overview
HPC hydraulic cone crusher is a high cone Germany introduced the lasted technology and the development of the world's advanced level of crusher, crushing it is speed,eccentricity (stroke) and high performance type of crushing chamber design perfect combination. It not only improves the production capacity and crushing efficiency, but also expanded the scope of application, from limestone to basalt, produced from the stone to a variety of ore crushing, it can provide the crushing performance incomparable in all kinds of crushing, fine crushing, grinding operation.
This series of hydraulic cone crusher is a high efficiency crusher introduced from Germany.It not only greatly improves the capacity and crushing efficiency, but also expanded the range of application.
Detailed introduction
Raw materials: Iron ore, copper, steel slag, slag, river stone, granite, basalt, quartz stone, diabase
Capacity: 35-725t/h
Max feeding size: 220mm
Application: metal mine, quarry, concrete batching station and glass industry
Working Principle
Under the leading role of eccentric sleeve, the movable cone of the high-efficiency hydraulic cone crusher does rotary and pendulum movement which drives the broken walls squeeze and twist the raw material between the rolling ace tabular wall and it. According to laminated theory, the raw material is crushed and polished following their own texture by the force from different directions. Stable aggregate are produced finally. The eligible raw material falls down from the gap of the broken wall. The others will be kept crushing until it reaches the desired size.
Technical Parameter
| Type | Model | Chamber Type | Diameter of Large End of Crushing Cone (mm) | Adjustable Range of Discharge Opening (mm) | Max Feed Size | Capacity (t/h) | Motor Power (kw) | Weight (kg) | Dimension (L×W×H)(mm) |
| Ф900 | PYGB-0913 | Standard fine type | 950 | 14-38 | 110 | 130-250 | 160 | 17000 | 2007×2225×1950 |
| PYGB-0921 | Standard coarse type | 22-38 | 178 | 155-250 | |||||
| PYGD-0907 | Short coarse type | 8-25 | 60 | 80-220 | |||||
| PYGD-0912 | Short head coarse type | 12-15 | 100 | 120-220 | |||||
| Ф1100 | PYGB-1121 | Standard medium type | 1100 | 20-45 | 180 | 200-445 | 220 | 18500 | 2520×2620×2400 |
| PYGB-1124 | Standard coarse type | 26-45 | 200 | 230-445 | |||||
| PYGD-1110 | Short head medium type | 12-25 | 82 | 120-220 | |||||
| Ф1400 | PYGB-1415 | Standard fine type | 1400 | 16-50 | 130 | 225-620 | 315 | 29700 | 3106×3170×2945 |
| PYGD-1408 | Short coarse type | 8-25 | 68 | 115-370 | |||||
| PYGD-1414 | Short head coarse type | 12-25 | 115 | 180-370 | |||||
| Ф1500 | PYGB-1518 | Standard fine type | 1500 | 19-50 | 152 | 320-725 | 400 | 38800 | 3405×3480×3196 |
Our strength:
1. High capacity
2. Provide unparalleled performance in middle or fine crushing operation
3. Easy to maintain
