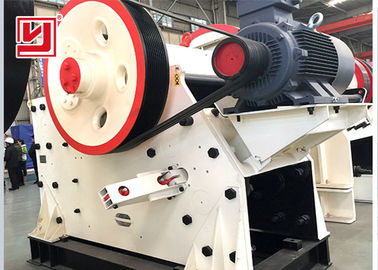

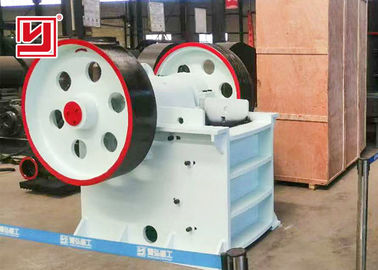

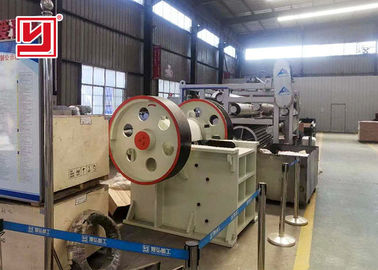

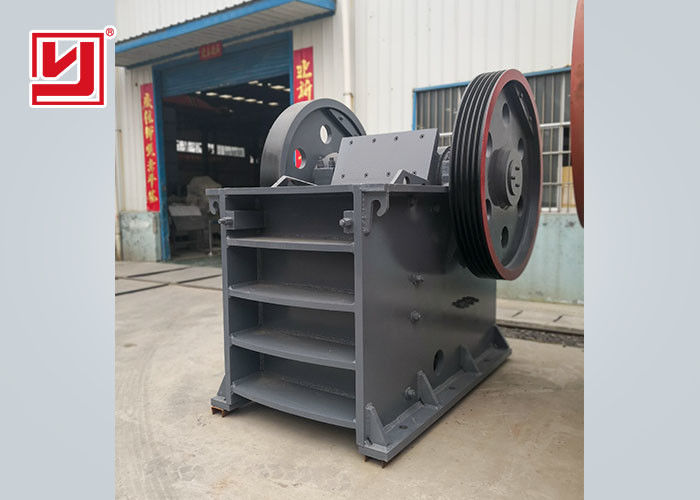

Big Capacity Stone Crushing Machine Jaw Crusher with Unique Jaw Head Structure

Large Image : Big Capacity Stone Crushing Machine Jaw Crusher with Unique Jaw Head Structure

Product Details:

Place of Origin:	Henan,China
Brand Name:	Yuhong
Certification:	CE, ISO, BV
Model Number:	PE-250*400

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negotiation
Delivery Time:	25-30 Days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

Detailed Product Description

Application:	Mining,quarry,construction,metallurgy	Condition:	New
Warranty:	1 Year	Dimension(lwh):	130010901270
Function:	Stone Crushing Machine	Type:	Jaw Crusher
High Light:	stone crushing equipment , stone crusher machine

big capacity China jaw crusher stone crushing machine from manufactory

Jaw crushers are typically used as primary crushers, or the first step in the process of reducing rock. They typically crush using compression. The rock is dropped between two rigid pieces of metal, one of which then move inwards towards the rock, and the rock is crushed because it has a lower breaking point than the opposing metal piece.

Jaw crusher movement is obtained by using a pivot point located at one end of the “swing jaw”, and an eccentric motion located at the opposite end.

Processed Materials:
Iron ore, copper ore, gold ore, manganese ore, river stone, gravel, granite, basalt, minerals, quartz, diabase, etc.

Application:

Mining, metallurgy, construction, highway, railroad, and water conservancy, etc. Big Capacity Stone Crushing Machine Jaw Crusher with Unique Jaw Head Structure 0

Technical Parameter:

Model	Max feeding size	Adjustable discharging opening	Capacity	Eccentrical axle speed rate	Motor power	Weight	Overall Dimensions
Model	(mm)	(mm)	(t/h)	(r/min)	(kw)	(t)	(mm)
PE-150×250	125	10-40	1-3	250	5.5	0.8	720×660×850
PE-200×300	180	15-50	2-6	260	7.5	1.2	910×750×990
PE-200×350	180	18-70	3-10	260	11	1.5	1000×870×990
PE-250×400	210	20-60	5-20	300	15	2.8	1300×1090×1270
PE-400×600	340	40-100	16-60	275	30	7	1730×1730×1630
PE-500×750	425	50-100	40-110	275	55	12	1980×2080×1870
PE-600×750	500	150-200	80-240	275	55	15.8	2070×2000×1920
PE-600×900	500	65-160	50-180	250	55	17	2190×2206×2300
PE-750×1060	630	80-140	110-320	250	110	29	2660×2430×2800
PE-800×1060	640	130-190	130-330	250	110	29.8	2710×2430×2800
PE-830×1060	650	160-220	150-336	250	110	30.7	2740×2430×2800
PE-870×1060	660	200-260	190-336	250	110	31.5	2810×2430×2800
PE-900×1060	680	230-290	230-390	250	110	33	2870×2420×2940
PE-900×1200	750	98-165	220-450	200	100	52	3380×2870×3330
PE1000×1200	850	195-265	315-500	200	110	55	3480×2876×3330
PE1200×1500	1020	150-350	400-800	180	160-220	100.9	4200×3300×3500
PE1500×1800	1200	220-350	500-1000	180	280-355	122	5160×3660×4248
PE1600×2100	1500	300-400	1300-2200	160	350-380	150.6	6210×4013×4716
PEX-150×750	120	18-48	8-25	320	15	3.8	1200×1530×1060
PEX-250×750	210	25-60	13-35	330	30	5.5	1380×1750×1540
PEX250×1000	210	25-60	16-52	330	30	7	1560×1950×1390
PEX250×1200	210	25-60	20-61	330	37	9.7	2140×1660×1500
PEX300×1300	250	20-90	16-105	300	55	15.6	2720×1950×1600

Features:

1. Unique jaw head structure and perfect seal lengthen bearing's life.Unique flywheel design reduces the shock of machine to guarantee stable operation.

2. Spacer type discharge port adjustment device is very reliable, wide range of adjusting, flexibility of machine is increased.

3. Deep crushing cavity, no dead corner. Input size range and capacity are increased; big crushing radio, even final product, new oil-way design can match up with oil pump, easier and effective operation

4. Yuhong Machine thought deeply in selecting the materials for core parts, and adopted high-quality high manganese steel casting which is most recognized in the world at present. This casting greating extends the service life of core parts and effectively avoids too many shutdowns and effectively avoids too many shutdowns and maintenance tasks.

5. Mono-Block Cast and High Safety Factor:Adopting mono-block cast and new assembly technology could make it match up with rack perfectly, radial strength is increased.

6. Yuhong Machine formulates strict quality inspection procedures and uses advanced machining equipment to deliver perfect jaw crushers.
