Product Details:
Payment & Shipping Terms:
|
| Capacity: | 21.2t/h | Rotating Speed: | 60r/min |
|---|---|---|---|
| Reducer: | JZQ250 | Condition: | New |
| Warranty: | 12months | Color: | As Requirement |
| High Light: | mining belt conveyor,industrial conveyor equipment |
||

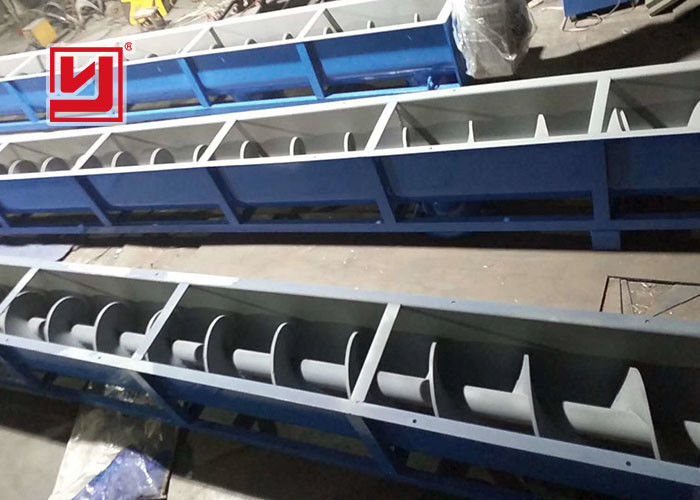

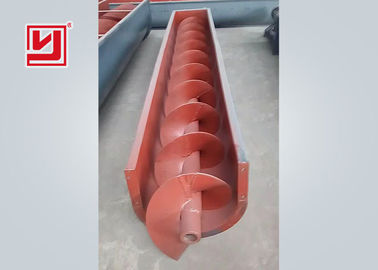

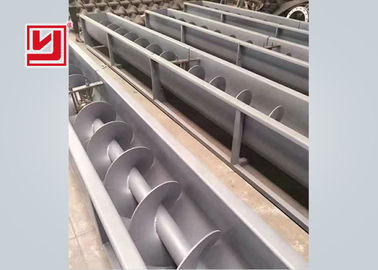

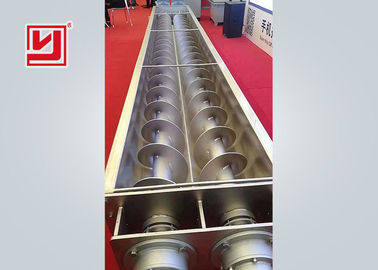

GX300 good quality hot sale low price Screw conveyor screw conveying machine
Screw conveyors are an essential part of many conveying and storage systems. Simple and robust in design they provide a cost-effective, versatile conveying capability, we supply screw conveyors for the broadest range of industrial applications, in operation across the food, animal feed and cereal, chemicals, minerals, waste recycling and pharmaceutical sectors.
Working principle of screw conveyor
The material feed into the casing and screw flight was hold back by the frication resistance acted on the wall of casing during running, the screw flight push the material and make the material do axial movement, simultaneity the clockwise and counterclockwise fight act as mixer. The material can be discharged at the proper outlet at the bottom of casing or transport out at the end of chute. Conveyor with simple construction, be able to feed and discharge in many position, it is easy to operate, have good seal capability and environmental friendly.
Yuhong conveyor features:
1. Wide range of bulk materials can be handled, including powder, granular and block materials .
2. High transportation efficiency
3. Reliable electrical device and mechanical safety device .
4. Flexible installation and maintenance .
5. Construction available in carbon steel, stainless steel .
6. Engineered and manufactured to meet specific customer requirements.
| Model |
Technical Performance |
Driving device | Driving device | Weight (kg) | ||||
| Diameter(mm) |
Length (m) |
Capacity (t/h)
|
Rotating speed(min) | Reducer | Motor | |||
| GX200 | -10 | 9 | 60 | JZQ250 | 23.34 | Y90S-4 | 1.1 | 726 |
| GX200 | -20 | 9 | 60 | JZQ250 | 23.34 | Y90L-4 | 1.5 | 1258 |
| GX250 | -10 | 15.6 | 60 | JZQ250 | 23.34 | Y100L2-4 | 2.2 | 960 |
| GX250 | -20 | 15.6 | 60 | JZQ250 | 23.34 | Y100L1-4 | 3 | 1750 |
| GX300 | -10 | 21.2 | 60 | JZQ350 | 23.34 | Y100L2-4 | 3 | 1373 |
| GX300 | -20 | 21.2 | 60 | JZQ350 | 23.34 | Y112M-4 | 4 | 2346 |
| GX400 | -10 | 51 | 60 | JZQ400 | 23.34 | Y132S-4 | 5.5 | 1911 |
| GX400 | -20 | 51 | 60 | JZQ500 | 23.34 | Y160M-4 | 11 | 2049 |
| GX500 | -10 | 87.5 | 60 | JZQ400 | 23.34 | Y132M-4 | 7.5 | 2381 |
| GX500 | -20 | 87.5 | 60 | JZQ650 | 23.34 | Y180M-4 | 18.5 | 5389 |
| GX600 | -10 | 134.2 | 45 | JZQ750 | 23.34 | Y180L-4 | 22 | 3880 |
| GX600 | -10 | 134.2 | 45 | JZQ850 | 23.34 | Y250M-4 | 55 | 7090 |
