| Diameter: | 1500mm | Condition: | New |
|---|---|---|---|
| Application: | Mining,metally,construction,Quarry | Key Word: | Cyclone Dust Collector |
| Warranty: | 1 Year | Fan Power: | 15Kw |
| High Light: | dust collection equipment,pulse bag dust collector |
||

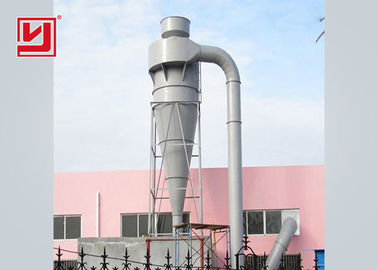

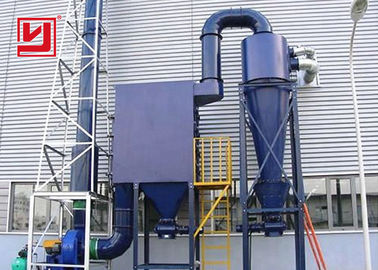

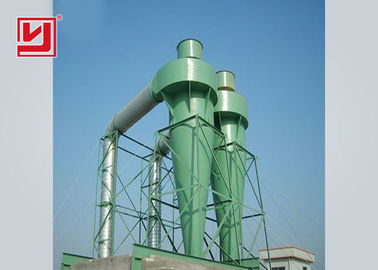

High efficiency mining industrial cyclone dust collector for metally industry
Advantage
This environmental protection equipment aim at protecting the environment and reduce the pollution through abatement of smoke and dust extraction .And the purifying effect hardly up to 99.5%.
Technical Parameter:
| Model | Diameter of cylinder(mm) | Removed moisture% | Evaporated water(Kg) | Cylinder cross-sectional area | Pipe diameter(mm) | Fan power(kw) |
| XF800 | 800 | 15 | 375 | 0.50 | 220 | 2.2 |
| XF1000 | 1200 | 15 | 1050 | 1.13 | 360 | 5.5 |
| XF1200 | 1500 | 15 | 1500 | 1.77 | 400 | 7.5 |
| XF1500 | 1800 | 15 | 2250 | 2.54 | 450 | 15 |
| XF1800 | 2000 | 15 | 3000 | 3.14 | 550 | 18.5 |
| XF1800 | 2400 | 15 | 4725 | 4.52 | 600 | 30 |
| XF2200 | 2800 | 15 | 7500 | 6.16 | 820 | 55 |
| XF2800 | 3200 | 15 | 10500 | 8.04 | 1150 | 75 |
Use and characteristics:
1. Cyclone bag-type dust collector is a kind of dust filtering device. It is suitable for capturing small, dry, non-fibrous dust.
2. The filter bag is made from textile of filter cloth or non-texile of filt.
3. Filter dusty gas with fiber fabric. When dusty gas get into gilter bag, the stive of coarse and large gravity will fall into ash bucket. When it filter the gas with small ash, the ash will be intercepted and then get the clean gas.
4. According to customer requiry, we can design the flow and draft.
