Product Details:
Payment & Shipping Terms:
|
| Name: | Electromagnetic Vibrating Feeder | Color: | As Requirement |
|---|---|---|---|
| Condition: | New | Warranty: | 1 Year |
| Type: | Vibrating Feeder | Application: | Mining |
| Usage: | Feeding Raw Material | Brand Name: | Yuhong |
| High Light: | vibratory feeding machine,disc sand feeder |
||

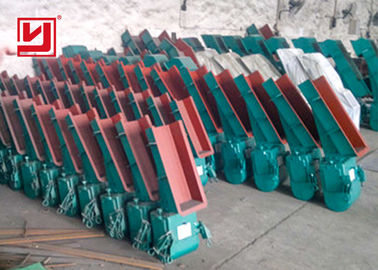

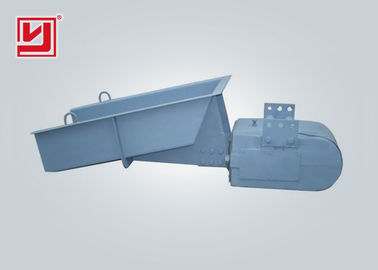

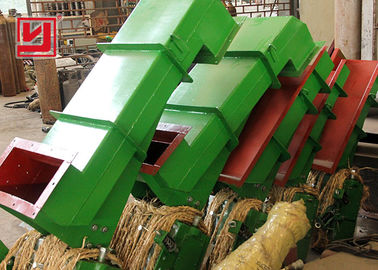

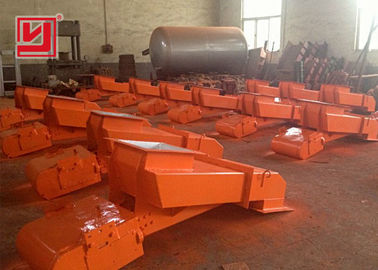

New efficient electromagnetic vibrating feeder for stone crushing plant
PRODUCTION LINE
The Crushing plants make use of a large range of equipment, such as a vibrating feeder, pre-screener, loading conveyor, intake hopper, magnetic separator, crushing unit, such as VSI vertical shaft impact crusher (sand making machine), jaw crusher and cone crusher etc. It’s a machine used for feeding block material and screening,and the motor, bearing, bolts we used are Chinese 5 brands, and we insist that” Quality first, customer first”, to ensure the quality of the machine.
APPLICABLE MATERIALS
The vibrating feeder is for feeding block material for crushing and screening machine. It is divided into steel plate structure and grate structure two types; steel plate structure vibrating feeder is applied in stone and sand production line, grate structure vibrating feeder is for coarse screening material to make whole system more economical, it’s an essential machine in the crushing and screening line.
It can be widely used in the fields of metallurgy,construction, stone crushing, etc..to process quartz, feldspar, calcite, talcum, barites, fluorite, tombarthite, marble, ceramic, bauxite, manganese ore, iron ore, limestone, dolomite, potassium, bentonite, medical stone, rock phosphate, active carbon, carbon black, potassium, coal, etc.
Technical Parameter:
| Model | Max. Feeding size | Processing capacity | Motor power | Obliquity of material trough | Total weight | Trough size | Dimensions |
| (mm) | (t/h) | (kw) | (°) | (kg) | (mm) | (L*W*H)(mm) | |
| GZD-650*2300 | 300 | 80 | 1.1*2 | 10 | 2798 | 650*2300 | 2300*1360*780 |
| GZD-850*3000 | 400 | 120 | 3*2 | 10 | 3607 | 850*3000 | 3110*1800*1600 |
| GZD-1100*4200 | 580 | 240 | 5.5*2 | 10 | 4170 | 1100*4200 | 4400*2050*1660 |
| GZD-1500*5600 | 1050 | 450-800 | 11*2 | 10 | 4823 | 3800*960 | 3920*1640*1320 |
| ZSW-490*110 | 630 | 150-320 | 15 | 0 | 6647 | 4900*1100 | 4980*1830*1320 |
| ZSW-600*130 | 750 | 400-600 | 22 | 0 | 9250 | 6000*1300 | 6082*2580*2083 |
Feature:
1.Grate: Grate clearance is adjustable according to requirement, backplate is removable to simplify maintenance and lengthen service life.
2.Gear: High strength and high high precision gear make stable working of machine
3.Motor: Famous motor brand, clients can choose Siemens brand.
4.Oil quantity display: Clients can check the position of lubricating oil.
Company Information:
Henan Yuhong Heavy Machinery Co.,LTD is a joint-stock mining machinery manufacturing enterprise integrated in scientific research,production and marketing.our main products include five series ,they are the Crushing equipment ,Beneficiation equipment,Grinding Powder equipment ,Drying equipment ,Kilning equipment.YUHONG GROUP set off from "the customer for this " angle ,put self's whole heart to be that the customer provides the valuable service pattern,the effort using up 100% satisfies different customer product need, hope to cooperate with you!
