Indsutrial Gold Mine Wet Pan Mill For Selecting Ferrous / Nonferrous Metals

Indsutrial Gold Mine Wet Pan Mill For Selecting Ferrous / Nonferrous Metals
Indsutrial Gold Mine Wet Pan Mill For Selecting Ferrous / Nonferrous Metals Indsutrial Gold Mine Wet Pan Mill For Selecting Ferrous / Nonferrous Metals Indsutrial Gold Mine Wet Pan Mill For Selecting Ferrous / Nonferrous Metals

Large Image :  Indsutrial Gold Mine Wet Pan Mill For Selecting Ferrous / Nonferrous Metals

Product Details:

Place of Origin: ZHENGZHOU
Brand Name: YUHONG
Certification: ISO,CE,BV,
Model Number: 1100B

Payment & Shipping Terms:

Minimum Order Quantity: 5sets
Price: Negotiation
Packaging Details: Standard package in wooden boxes or container.
Delivery Time: 10-12DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 60 SETS/MONTH
Detailed Product Description
Application: Gold Ore,silver Ore,iron Ore,lead Ore,zine Ore,antimony Ore Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Energy & Mining
Model: 1200 Rollers Materials: ALLOY
Rollers Model: Outer Diameter 120 Cm Thickness 20 Cm Grinding Base Thickness: 12 Cm
Basin diameter: 230cm Basin thickness: 3-4mm
Motor Brand: Siemens Bearing Brand: Wangfangdian,ZWZ
High Light:

gold grinding machine

,

gold grinding mill

Model 1200B China gold mine wet pan mill price in Sudan for sale



Introduction

1200B model wet pan mill is widely used for selecting ferrous metals,nonferrous metals and nonmetals,as well asprecious metals like gold and silver.Based on advanced technology and first-class after-sales service,The Nile 1200B wet pan mill is the first choice for ore beneficiation plant with all levels.


Gold wet pan mill is named by the diameter of roller. Φ1300,Φ 1350,Φ 1400,Φ 1500,Φ 1600 is suitable for selection of iron ore, molybdenum ore ,lead ore ,zinc ore, antimony ore and so on. Φ 850, Φ 900, Φ 1000,Φ 1100,Φ 1200 is suitable for selection of gold ore. Above all, 1200a type is the most popular and widely use.


Mill Working Principle



Wet pan mill mainly consists of driving device,frame,water basin,grinding wheels and grinding base ,etc.It grinds ores by wheel driving force:firstly,the power is transferred from the motor to the reducer,then to the horizontal shaft ,and finally to the grinding wheel;the wheels then rotate anticlockwise.The wheels can revolve around the vertical shaft of the pan mill,at the same time,it can revolve on its own axis,while the grinding base will remain still.The ores are then pressed,rubbed and grinded repeatedly.


A. Only when the wet pan mill/ gold ore grinding machine run smoothly then start to feed the raw material into the grinding pan.
B. The gold grinding machine/wet pan mill is prohibite to start work with raw material inside, it must clean the residual ore in the middle of grinding pan and then start the machine.
C. Uniform feeding, shall not be more and less, it will be better to use the feeding machine.
D. Bearing parts must often add grease oil and gear oil.
E. Often check if the screw is loose.
F. If found the bearing is damage, pls change it timely just in case the eccentric shaft damage other components.
G. When the machine is on work, pls pay attention to the reducer and bearing part, to find if it has some abnormal noise, high temperature and high motor current accurs is not allowed. Once it happens, the machine should stop working immediately.
H. When repair the machine, pls remove the V-belt to keep the machine in a safe condition.Indsutrial Gold Mine Wet Pan Mill For Selecting Ferrous / Nonferrous Metals 0


Technical Parameters

Model Specification Input size Rotate Speed Powder Weight
(mm) (r/min) (kw) (t)
1600A 1600×400×200×500±20mm <25mm 20-22 25KW 14.5
1500A 1500×350×200×460±20mm <25mm 20-22 22KW 13.5
1500B 1500×350×150×460±20mm <25mm 20-22 22KW 12.3
1500C 1500×300×150×420±20mm <25mm 20-22 22KW 11.3
1400A 1400×250×150×350±20mm <25mm 16-18 18.5kw 8.5
1400B 1400×250×150×350±20mm <25mm 21-23 18.5kw 8.5
1350A 1350×250×150×350±20mm <25mm 16-18 18.5kw 8
1350B 1350×250×150×350±20mm <25mm 21-23 18.5kw 8
1300A 1300×250×150×350±20mm <25mm 16-18 15kw 7.5
1300B 1300×250×150×350±20mm <25mm 21-23 15kw 7.5
1200A 1200×200×80×250±20mm <25mm 17-19 7.5kw 5.5
1200B 1200×200×80×250±20mm <25mm 23-25 7.5kw 5.5
1100A 1100×200×80×250±20mm <25mm 17-19 7.5kw 5
1100B 1100×200×80×250±20mm <25mm 23-25 7.5kw 5
1000 1000×200×80×250±20mm <25mm 13-15 5.5kw 4.5

;

Part views

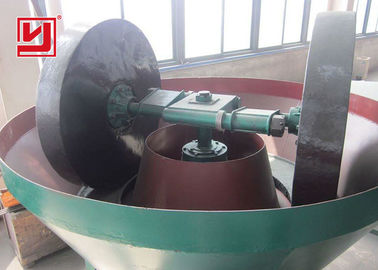

Chrome material roller:Introduction of core technology ,wear-resisting improve>130%,the surface is smooth and without porosity



Indsutrial Gold Mine Wet Pan Mill For Selecting Ferrous / Nonferrous Metals 1

Indsutrial Gold Mine Wet Pan Mill For Selecting Ferrous / Nonferrous Metals 2Indsutrial Gold Mine Wet Pan Mill For Selecting Ferrous / Nonferrous Metals 3
