Product Details:
Payment & Shipping Terms:
|
| Diameter: | 1200mm | Condition: | New |
|---|---|---|---|
| Application: | Mining,metally,construction,Quarry | Key Word: | Cyclone Dust Collector |
| Warranty: | 1 Year | Fan Power: | 7.5Kw |
| High Light: | dust collection equipment,industrial dust collector |
||

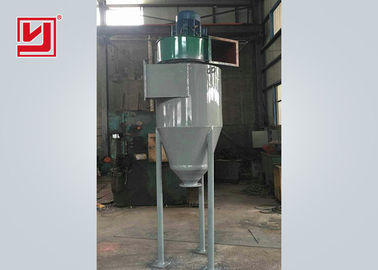

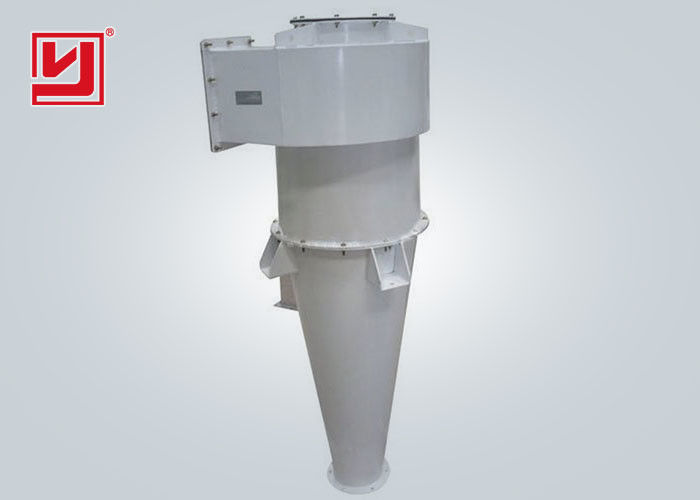

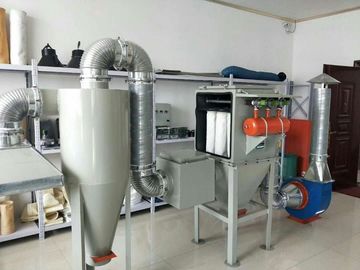

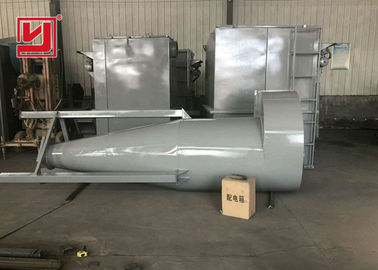

Industrial dust collecting machine cyclone dust collector for minging industry
Working Principle
Cyclone bag Dust Collector is a dry dust filter facility filtering dust-contained gas with adoption of fiber-fabric filtering effect.
After such dust-contained gas enters bag dust collector, dusts with large particles and large proportions will drop down and fall into ash bucket due to with gravity effect.
After gases with fine dusts will pass through filter material, such dust will be
retained for making them purified.
Advantage
This environmental protection equipment aim at protecting the environment and reduce the pollution through abatement of smoke and dust extraction .And the purifying effect hardly up to 99.5%.
Technical Parameter:
| Model | Diameter of cylinder(mm) | Removed moisture% | Evaporated water(Kg) | Cylinder cross-sectional area | Pipe diameter(mm) | Fan power(kw) |
| XF800 | 1000 | 15 | 750 | 0.79 | 320 | 4.0 |
| XF1000 | 1200 | 15 | 1050 | 1.13 | 360 | 5.5 |
| XF1200 | 1500 | 15 | 1500 | 1.77 | 400 | 7.5 |
| XF1500 | 1800 | 15 | 2250 | 2.54 | 450 | 15 |
| XF1800 | 2200 | 15 | 3750 | 3.80 | 600 | 22 |
| XF2000 | 2600 | 15 | 6000 | 5.31 | 700 | 37 |
| XF2500 | 3000 | 15 | 9000 | 7.07 | 1000 | 55 |
| XF3000 | 3600 | 15 | 16500 | 10.18 | 1350 | 75 |
