Product Details:
Payment & Shipping Terms:
|
| Weight: | 1.2t | Application: | Mining,construction,metallurgy |
|---|---|---|---|
| Condition: | New | Warranty: | 1 Year |
| Dimension(l*w*h): | 910*750*990 | Outlet Size: | 15-50mm |
| Function: | Crushing Machine | Type: | Jaw Crusher |
| High Light: | cone crusher machine,stone crusher machine |
||

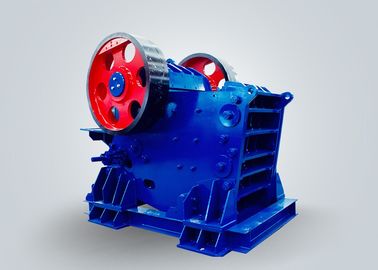

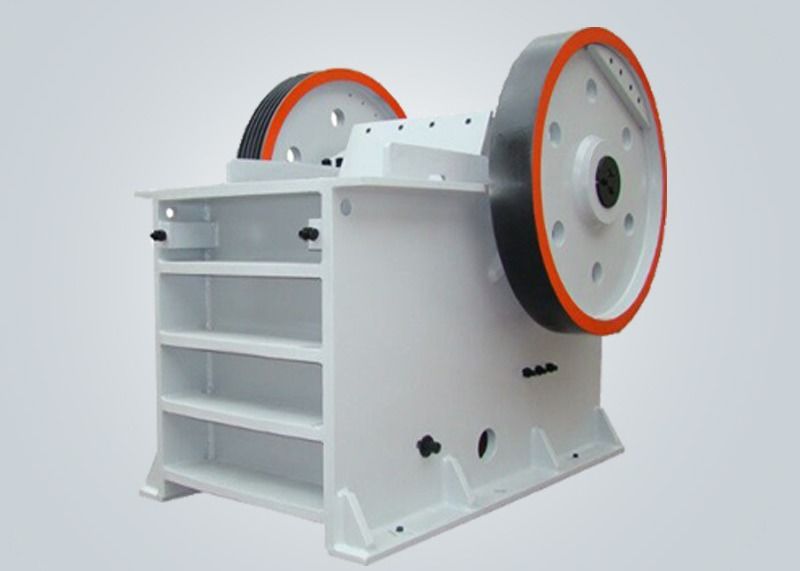

Industrial Stone Crusher Manufactures Jaw Crusher Machine 15-50mm Discharge Size
Jaw crushers are typically used as primary crushers, or the first step in the process of reducing rock. They typically crush using compression. The rock is dropped between two rigid pieces of metal, one of which then move inwards towards the rock, and the rock is crushed because it has a lower breaking point than the opposing metal piece.
Jaw crusher movement is obtained by using a pivot point located at one end of the “swing jaw”, and an eccentric motion located at the opposite end.

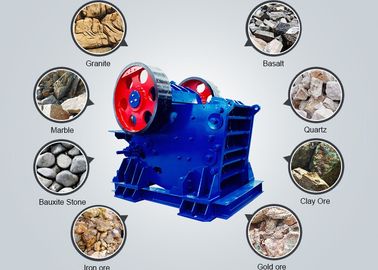

Processed Materials:
Iron ore, copper ore, gold ore, manganese ore, river stone, gravel, granite, basalt, minerals, quartz, diabase, etc.
Application:
Mining, metallurgy, construction, highway, railroad, and water conservancy, etc.
Technical Parameter:
| Model | Max feeding size | Adjustable discharging size | Capacity | Eccentrical axle speed rate | Motor power | Weight | Overall dimensions |
| (mm) | (mm) | (t/h) | (r/min) | (kw) | (t) | (mm) | |
| PE-200*300 | 180 | 15-50 | 2-6 | 260 | 7.5 | 1.2 | 910*750*990 |
| PE-250*400 | 210 | 20-60 | 5-20 | 300 | 15 | 2.8 | 1300*1090*1270 |
| PE-500*750 | 425 | 50-100 | 40-110 | 275 | 55 | 12 | 1980*2080*1870 |
| PE-600*900 | 500 | 65-160 | 50-180 | 250 | 55 | 17 | 2190*2206*2300 |
| PE-800*1060 | 640 | 130-190 | 130-330 | 250 | 110 | 29.8 | 2710*2430*2800 |
| PE-900*1200 | 750 | 98-165 | 220-450 | 200 | 100 | 52 | 3380*2870*3330 |
Working Principle:
The motor transmits power through belt, drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft. The angle between toggle plate and moving jaw plate increases when moving jaw moves . So the moving jaw moves towards the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet.
Features:
1. Unique jaw head structure and perfect seal lengthen bearing's life.Unique flywheel design reduces the shock of machine to guarantee stable operation.
2. Spacer type discharge port adjustment device is very reliable, wide range of adjusting, flexibility of machine is increased.
3. Deep crushing cavity, no dead corner. Input size range and capacity are increased; big crushing radio, even final product, new oil-way design can match up with oil pump, easier and effective operation
4. Yuhong Machine thought deeply in selecting the materials for core parts, and adopted high-quality high manganese steel casting which is most recognized in the world at present. This casting greating extends the service life of core parts and effectively avoids too many shutdowns and effectively avoids too many shutdowns and maintenance tasks.
5. Mono-Block Cast and High Safety Factor:Adopting mono-block cast and new assembly technology could make it match up with rack perfectly, radial strength is increased.
6. Yuhong Machine formulates strict quality inspection procedures and uses advanced machining equipment to deliver perfect jaw crushers.
