Speed Of Drum Rotary: | 4-10 R/min | Capacity: | 5-8t/h |
---|---|---|---|
Max Inlet Moisture: | 15% | Outlet Moisture: | 0.1-0.8% |
Warranty: | 12months | Color: | As Requirement |
High Light: | industrial sand dryers,sand rotary dryer |
Manufacturer Henan YUHONG CE & ISO9001 Three Cylinder Sand Dryer Machinery
Product Descriprion
Three Cylinder Sand Rotary dryer/triple pass sand rotary drum dryer manufactured by us adopts new lifting plate, which is of functions like guiding, current-sharing, and material rising. The materials are raised and evenly drop so that they are in full contact with heat for better drying efficiency. Our Three Cylinder Sand Rotary dryer/triple pass sand rotary drum dryer is designed with the best working conditions, which enables it to save 10-15% of energy and increase 10-15% of productivity compared with common rotary dryer.
Advantage of three drum dryer
1. Three cylinder dryer use telescope-feed structure, dry the material quickly
2. Simple design, self-insulation, improve the heat efficiency to exceed 80%
3. Structure delicate, stable operation
4. good drying performance, coal consumption <8kg when drying 1t material
5. The fuel can be coal, oil, natural gas etc, dry mass, granule and powder material
6. Reduce land area for 50% compared to single drum rotary dryer, so construction investment is saved 50%power consumption saved 60%.
Technical Parameter
Parameters | YHSS625 |
Drying capacity | 5-8t/h |
Diameter of drum | 2140mm |
Length | 2000mm |
Motor power | 3kwx2 |
Reducer model | XWD-5 |
Speed of drum rotation | 4-10 r/min |
Max moisture | 15% |
Moisture of end products | 0.1%-0.8% |
Max. temperature inside | 700-750℃ |
Outlet temperature | 30-60℃ |
Hot-blast Stove dimensions | 2326×1726×2400mm |
Furnace door | 350×450mm |
Quicksand tube | φ273×1500 mm |
Coal consumption | 7-10 kg/ per ton sand |
Detialed Flowchart

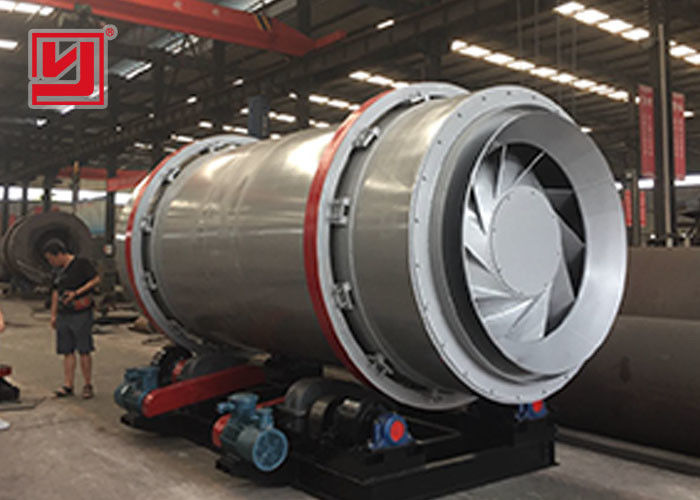

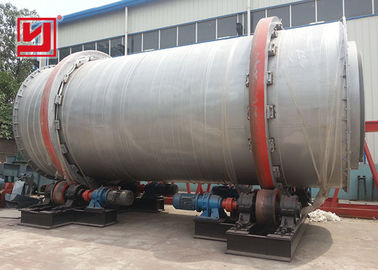

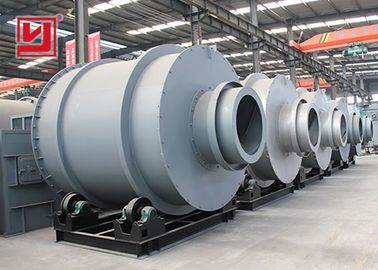

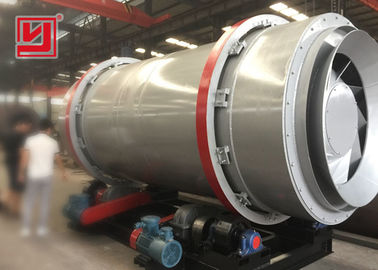

Detailed Image
Our Service
1.According to your inquiry, We will reply to you in 24 hours.
2.Best After-sales: We will send the technical personnel to the site for installation, commissioning and training work.
3.Warranty period 12 Months, in addition to the force majeure and man-made factors, the damage caused by design, process and manufacturing equipment, the seller is responsible for sending people to offer free repair.
4.We will send the spare parts as soon as possible when necessary, equipment repair parts provided by the seller are original, authentic, quality goods.
