Product Details:
Payment & Shipping Terms:
|
| Max Moisture: | 15% | Moisture Of End Products: | Ucts: 0.1%-0.8% |
|---|---|---|---|
| Capacity: | 3-5t/h | Motor Power: | 3kw |
| Warranty: | 12months | Color: | As Requirement |
| High Light: | rotary sand dryer,industrial sand dryers |
||
Yuhong brand Best Price Low Factory Price Three Drum Sand Dryer Hot Selling Africa
Product Description
River sand dryers are also called sand dryer, river sand dryer, sand drying machine, yellow sand dryers, dry mortar dryers, etc. River sand( yellow sand, mechanical sand) is an important raw material in construction engineering, with the requirement of urban development and construction, cement mortar (dry powder mortar, the mixed mortar, dry mortar, insulation mortar) and the demand is also increasing, the kinds of river sand dryer arises at the historic moment, and is widely used in sand making, building material, metallurgy, mineral processing, chemical industry, cement industry, etc.

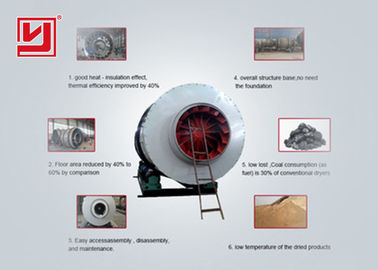

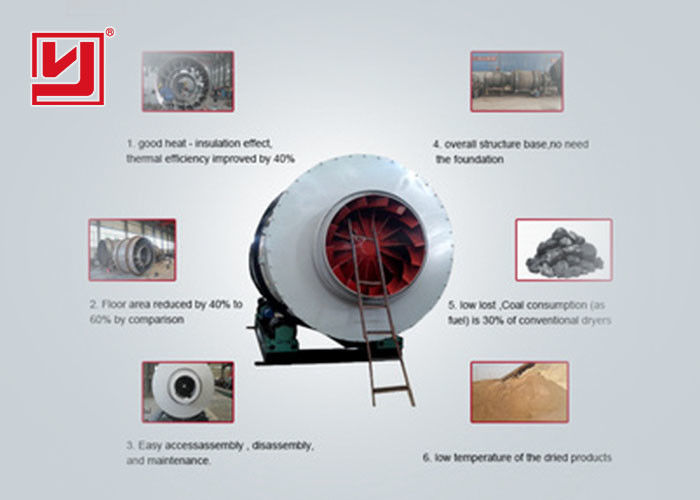

Silica Sand rotary dryer / drying machine Features:
1. Sand Dryer use telescope-feed structure, dry the material quickly.
2. Simple design, self-insulation, improve the heat efficiency to exceed 80%.
3. Refined experience, stable operation.
4. Good drying performance. coal consumption<8kg when drying 1 t material.
5. The fuel can be coal, oil, natural gas etc, dry mass and granule and powder material.
6. Reduce land area for 50% compared to single drum rotary dryer,so construction investment is saved 50%,power consumption saved 60%.
7. Finished product moisture can be adjusted depends on requirement of client.
8. Lower outlet temperature .longer dust removal using life.
9. Drive by tug not gear and pinion.
10. Finished product temperature lower than 60oC,packing can be done continuously.
Technical Parameter
| Parameters | YHSS623 | YHSS625 | YHSS6210 | YHSS6215 |
| Drying capacity | 3-5t/h | 5-8t/h | 10-13t/h | 15-20t/h |
| Diameter of drum | 1650mm | 2140mm | 2000mm | 2200mm |
| Length | 1650mm | 2000mm | 4500mm | 5500mm |
| Motor power | 3kw | 3kwx2 | 4kwx2 | 7.5kw*2 |
| Reducer model | XWD-5 | XWD-5 | XWD-5 | XWD-5 |
| Speed of drum rotation | 4-10 r/min | 4-10 r/min | 4-10 r/min | 4-10 r/min |
| Max moisture | 15% | 15% | 15% | 15% |
| Moisture of end products | 0.1%-0.8% | 0.1%-0.8% | 0.1%-0.8% | 0.1%-0.8% |
| Max. temperature inside | 700-750℃ | 700-750℃ | 700-750℃ | 700-750℃ |
| Outlet temperature | 30-60℃ | 30-60℃ | 30-60℃ | 30-60℃ |
| Hot-blast Stove dimensions | 2074×1526×2100mm | 2326×1726×2400mm | 2576×2026×2650mm | 2760m×2250m×2860m |
| Furnace door | 300×450 mm | 350×450mm | 350×450mm | 450*550 mm |
| Quicksand tube | ø273×1250m mm | φ273×1500 mm | φ325×1690 mm | φ400×2000 mm |
| Coal consumption | 7-10 kg/ per ton sand | 7-10 kg/ per ton sand | 7-10 kg/ per ton sand | 7-10 kg/ per ton sand |

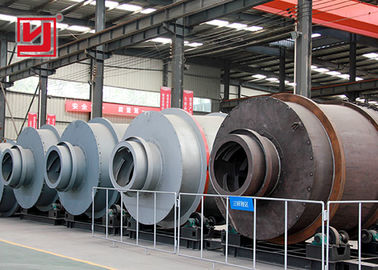

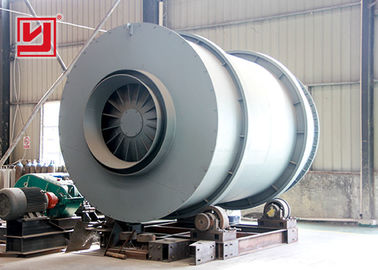

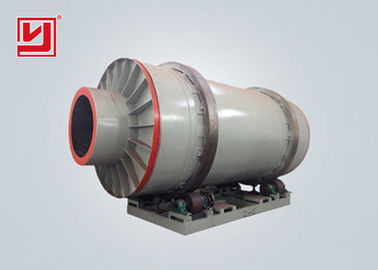

Detailed Image
Typical System Flowchart:
Heat Source
The heat source of the dryer is coal, electricity, gas, etc.Material hot atmosphere flow during drying and radiant, hot air drying cylinder is the heat flow from the tail, to move forward with a good contact with the material, through the heat conduction, convection and radiation heat transfer make full use of;Pass heat directly to the material, make the material moisture to evaporate in the cylinder body are constantly being, into the mouth of the wind device take out a large number of moisture, wet, prevent secondary pollution caused by the dust outside;Through internal spiral stirring, scavenging, copying plate, press the material movement, complete the drying process;Reverse flow dehumidification to avoid reducing repeat drying procedures.
Packing and shipping
1. By railway to Mid Asia,Russia,Belarus and so on.
2.By sea to the rest of the countries
3.Standard export packing,No damages to the machines and containers
Customer Case
