| Condition: | New | Warranty: | One Year |
|---|---|---|---|
| Key Word: | Euro Mill | Application: | Mining Industry |
| Product Name: | Yuhong Euro Mill | Feeding Size: | 30mm |
| High Light: | ultra fine grinding mill,industrial grinding mill |
||

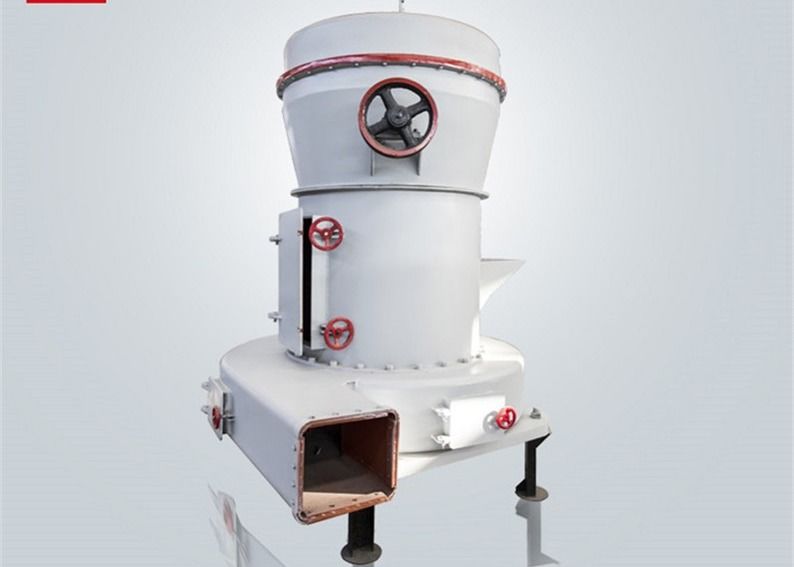

30mm feeding size good quality Euro mill Yuhong grinding machine

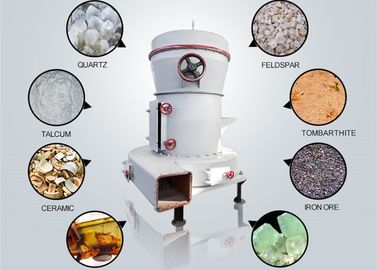

Processed Materials:Limestone, calcite, barite, dolomite, potassium feldspar, bentonite, medical stone, rock phosphate, manganese ore, iron ore, quartz, active carbon, carbon black, ceramic, coal, etc..
Applications:Cement , coal , power plant desulfurization, metallurgy, chemical industry, non-metallic mineral, construction material, ceramics.
Detailed introduction
Product Introduction
MTW European Trapezium Mill--- the latest type of Raymond Mill, has become one of the most advanced grinding mills in the world with its so many intellectual properties like bear-gear drive, inner oil lubricating system, arc air channel, etc.
Features
1. Efficient
Bevel gear overall drive reduces noise and increases drive efficiency and capacity.Inner automatic thin-oil lubricating system makes better lubrication for bearings.
2. Economical
Edge-replaceable shovel saves you money and frequency-control separator and cyclone powder collector ensure high capacity.
3. Advanced
Arc air channel reduces energy consumption and intelligent control ensures better operation.
4. Environmentally friendly
Unique air recycling system and dust collector make clean environment.
Working Principle
The system consists of grinding mill, separator, air blower, jaw crusher, vibrating feeder, hopper, dust collector, pipe, powder collector, electric cabinet, motors, etc.
Big lump materials are crushed to required size by jaw crusher, then elevated to buffering hopper through elevator, after that fed into the mill to be ground. Materials are to be ground between ring and rollers, and move up with the air flow, those particles which cannot pass the separator will fall down and be ground again, while others will be collected as finished product. Air flow passing through separator will go to the air blower for recycling, it's a closed system.
Technical Data
| Model Specification Name | MTW110 | MTW138 | MTW175 | MTW215 |
| Quantity of roller (PCS) | 4 | 4 | 5 | 5 |
| Inner diameter of ring (mm) | Ф1100 | Ф1380 | Ф1750 | Ф2150 |
| Rotary speed of main frame(r/min) | 120 | 96 | 75 | 65 |
| Max. Feeding size(mm) | < 30 | < 35 | < 40 | < 50 |
| Output size (mm) | 1.6～0.045 The fineness is 0.038 | 1.6～0.045 The fineness is 0.038 | 1.6～0.045 The fineness is 0.038 | 1.6-0.055 The fineness is 0.045 |
| capacity (t/h) | 3.5～10 | 6.5～15 | 11～25 | 20-50 |
| Overall dimension (mm) | 8910×6950×9010 | 10920×9655×10227 | 12095×10023×9916 | 14500x11200x10400 |
| Total weight (t) | 18 | 28.5 | 46 | 96 |

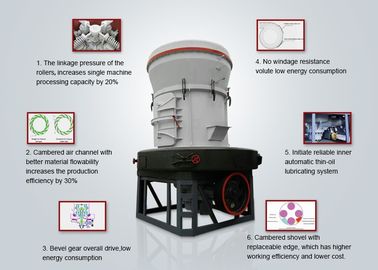

Advantage:
1. The linkage pressure of the rollers,increases single machine processing capacity by 20%
2. Cambered air channel with better material flowability increases the production efficiency by 30%
3. Bevel gear overall drive,low energy consumption, high working efficiency
4. No windage resistance volute low energy consumption, high working efficiency.
5. Initiate reliable inner automatic thin-oil lubricating system
6. Cambered shovel with replaceable edge, which has higher working efficiency and lower cost.
