Polyester Spiral Belt 3T/H 4T/H Stainless Steel Filter Press

Polyester Spiral Belt 3T/H 4T/H Stainless Steel Filter Press
Polyester Spiral Belt 3T/H 4T/H Stainless Steel Filter Press

Large Image :  Polyester Spiral Belt 3T/H 4T/H Stainless Steel Filter Press

Product Details:

Place of Origin: ZHENGZHOU
Brand Name: YUHONG
Certification: CE,ISO,BV
Model Number: YHDYQ1500WP1

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: The normal package is plastic cloth for main machine and wooden for parts.
Delivery Time: 14DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 SETS/MONTH
Detailed Product Description
Model: RBYL500 Capacity: 3-4T/H
Air Compressor: 3 Pressure: ≥0.5 Mpa
Feed Concentration: 0.8-8% Discharging Concentration: 25-45
High Light:

4T/H Stainless Steel Filter Press

,

3T/H Stainless Steel Filter Press

,

4T/H Stainless Steel Filter Press

Press filter polyester spiral press filter belt stainless steel filter press



Description



Sludge Dewatering Belt Filter Press is a common type of mechanical dewatering equipment. Which is widely used for efficient dewatering of sludge from municipal, industrial, mining and aggregaes wastewater treatment plants. Especially suitable for dewatering of tailings mud such as iron ore, copper ore, lead-zinc ore, fluorite ore, bauxite or rare earth ore; Dewatering operations such as ore dressing wastewater, sand washing mud or wash plant sludge.
The slurry is sandwiched between two tensioned porous belts, by passing those belts through a serpentine of decreasing diameter rollers. Water is then removed from the slurry and a solid material is produced.

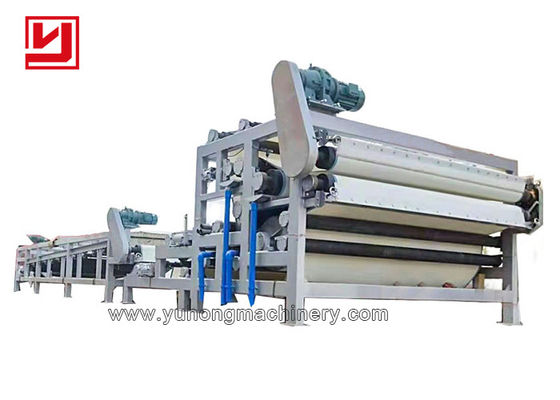

Polyester Spiral Belt 3T/H 4T/H Stainless Steel Filter Press 0



Working Principle



1. Thickener dehydration: chemical pretreatment stage
The belt filter press has higher requirements for flocculation effect. This machine uses a unique dosing mixer to achieve rapid flocculation and achieve the best flocculation effect.
2. Gravity dehydration: gravity concentration dehydration stage
The sludge is evenly fed into the mesh belt through the cloth bucket. The sludge runs forward with the filter belt. The free water flows into the water tank through the filter belt under the action of its own weight. The main function is to remove the free water in the sludge, so that the fluidity of the sludge is reduced and ready for further extrusion.
3. Low/medium pressure dewatering: wedge preloading dewatering stage
After gravity dewatering, it is still difficult to meet the sludge flowability requirements of the press dewatering section. After this stage of slight extrusion dewatering, the sludge is smoothly pressed and dewatered.
4. High pressure dehydration: the depressurization stage of the clamp press
The filter cake is repeatedly pressed and sheared around the press roll by the upper and lower filter belts. A large amount of capillary action water is removed to gradually reduce the moisture of the filter cake.

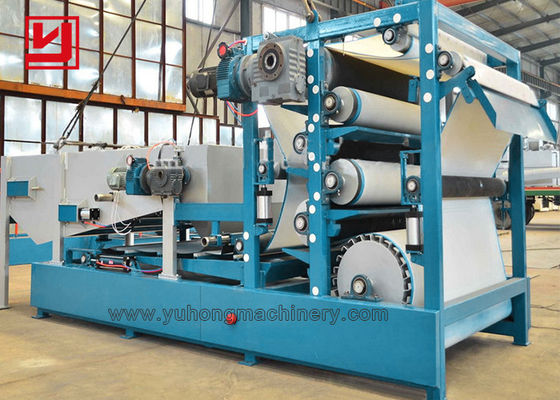

Polyester Spiral Belt 3T/H 4T/H Stainless Steel Filter Press 1

Click Now for Catalogs & Factory Price!





Features



1. Belt press has an easily adjustable and variable wedge compression zone that maximizes process rate and performance.
2. Suitable for all types of organic sludge and inorganic mud, municipal WWTP sludge, pulp &paper sludge, water plant sludge.
3. The belt press is constructed with a stainless steel structure and rollers, durable for more than 10 years .
4. Low power is needed to run the belt filter presses. With long term value and ease of operation.
5. Compact footprint, 4-stage dewatering and automated operation



 Polyester Spiral Belt 3T/H 4T/H Stainless Steel Filter Press 2



Dehydration effect table of common materials



Material

Material Moisture(%)

Filter Cake Moisture(%)

 Capacity(m3/h)

Municipal sewage plant sludge

96-98

75-80

5-6

Waterworks Sludge

87-98

75-80

4-5

Paper mill sludge

96-98

75-80

5-6

Sludge from printing and dyeing plant

97-98

80-82

4-5

Steel plant sludge 70-72 17-19 6-8
Soda plant salt mud 77-80 55-58 6-8
Acidic wastewater and sludge 65-85 35-50 6-8
Organic chemical plant sludge 95-98 50-55 5-6
Refinery sludge 97-98 75-80 4-5



Click Now for Catalogs & Factory Price!





Belt Press Applications



Belt filter presses are designed for dewatering applications where sludge is particulate, include various types of industrial wastewater sludge, such as sand-making mud, washed sand mud, mine tailings, piling mud, river silt, etc. They are pumped to the deep cone thickener, the flocculant is added to the thickener tank, and the concentration of the sludge in the thickener is increased by 60%-70% under flocculation and gravity precipitation. Then sent to the belt filter presses, under the action of a gravity zone, a wedge zone, and a pressure zone , the sludge cake with water content of less than 20% is formed and the overflow clean water will be re-processing.





Click Now for Catalogs & Factory Price!



Packing and shipping



We have established a logistics department consisting of 10 engineers, which is responsible for packaging, loading and global overseas freight. We will make full preparations according to customers' packaging and transportation requirements. Make sure that the goods are delivered to customers safely and quickly.



Our service



1.Does your product in stock?
Yes,once you place the order,the delivery will be done within one week.
2.Can the machine parts be replaced?
Yes,You can get them directly from us in a low price, and we make sure the easy maintainence and replacement .
3.How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every product before delivery.Please check our working site. If our quality is not good, i don't think we can sell so well.
4.Guaranteed?
Yes. If products’quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
5.How about price?
Yes, we are factory and be able to give you the lowest price than market one, and we have a policy that “ for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity”.
