Product Details:
Payment & Shipping Terms:
|
| Model: | RBYL500 | Capacity: | 3-4 T/h |
|---|---|---|---|
| Belt Width: | 500mm | Main Motor: | 1.5KW |
| Air Compressor: | 3 | Dimensions: | 4290*978*2350mm |
Description
This product is suitable for the dewatering of mixed sludge, digested sludge and residual activated sludge produced by urban sewage; it is also widely used in metallurgy, mining, chemical, papermaking, printing and dyeing, leather, electroplating, brewing, coal, sugar and other industries.
Dehydration of various types of sludge. Especially for activated sludge, metallurgical sludge, flotation concentrate, tailings (coal) dehydration effect is better.
Advantages
1) Low energy consumption and low cost operation.
2) Continuous production, processing capacity.
3) Manufactured from high quality materials and spare parts.
4) The structure design is advanced and the scope of application is wide.
5) The dewatering effect is good, and the moisture content of the slag cake is low.
6) Fully automatic operation, easy operation and maintenance.
7)The mesh belt debugging and rectification control system is advanced in technology and can guarantee long-term stable operation.
Principle
The belt type sludge thickener is suitable for domestic sewage treatment sludge, papermaking sludge, textile printing and dyeing sludge, leather and fur sludge, papermaking tail pulp and tail slag, mine dressing tail mud, food factory active sludge, electronic factory circuit board sludge, ceramic and marble polishing sludge, electroplating sludge, water washing kaolin sludge, coal washing and dewatering, industrial metal pickling sludge, steel-making sludge , construction piling sludge, river pond sediment sludge, electric porcelain sludge, alcohol, distiller's grains, cassava, potato starch processing tailings, Chinese herbal medicine extraction tailings, chemical plant organic sludge, etc.
Dehydration effect table of common materials
|
Material |
Material Moisture(%) |
Filter Cake Moisture(%) |
Capacity(m3/h) |
|
Municipal sewage plant sludge |
96-98 |
75-80 |
5-6 |
|
Waterworks Sludge |
87-98 |
75-80 |
4-5 |
|
Paper mill sludge |
96-98 |
75-80 |
5-6 |
|
Sludge from printing and dyeing plant |
97-98 |
80-82 |
4-5 |
| Steel plant sludge | 70-72 | 17-19 | 6-8 |
| Soda plant salt mud | 77-80 | 55-58 | 6-8 |
| Acidic wastewater and sludge | 65-85 | 35-50 | 6-8 |
| Organic chemical plant sludge | 95-98 | 50-55 | 5-6 |
| Refinery sludge | 97-98 | 75-80 | 4-5 |
Structures

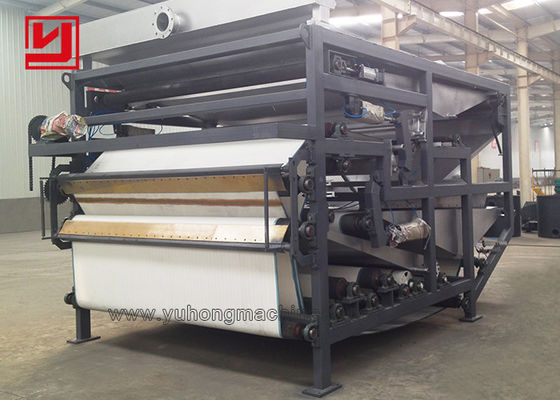

The belt filter press has two filter belts, and there is an extended gravity dehydration zone before the normal pressure dehydration zone. The unique structure not only improves the dehydration efficiency, reduces chemical agents, but also greatly reduces energy consumption.
FAQ
Q1: Why choose YuHong machinery?
A1: 1. Up-to-date design, CAD calculation and simulation;
2. ISO,BV,SGS,CE quapty control manufacturing;
3. Over 30 years experience, export to over 50 countries;
4. Highest standard to suit operators' use;
5. World class quality at affordable price.
Remarks: The price will depend on different models. Reply message ,you will get 5% discount price.
Q2: What are the requirements for belt filter press?
A2: Our Yuhong has a high standard on choosing material of belt filter press.
1.Using very high grade steel plate (i.e. Q235, Q345) on structuring part;
2. Using wear-resistant steel (i.e. ZG35, ZGMn13, 65Mn, 35CrMo, ZG60Si2CrA) on quick-wear parts;
3. The motor, reducer, bearing, belt, bolts are Chinese top 5 brands;
4. Metallurgy performance must be considered during designing, cutting, bending, fitting&welding.
Q3: What information do we need to provide you the reasonable model and best quotation?
A3: 1. How much sludge is produced per hour?
2.What is the type of the sludge? Piling sludge ,sand sludge, ore pulp sludge and so on ?
3. What is the solids content of sludge? And What is the particles size of the solids?
4. What is the processing capacity per hour?
