Warranty: | One Year | Key Word: | Euro Mill |
---|---|---|---|
Application: | Mining Industry | Product Name: | Yuhong Euro Mill |
Feeding Size: | 50mm | Capacity: | 20-50t/h |
High Light: | grinding mill equipment,ultra fine grinding mill |

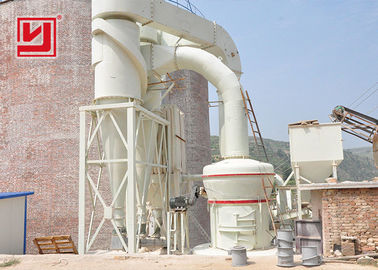

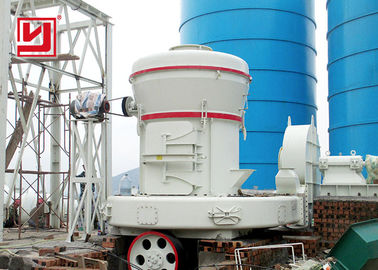

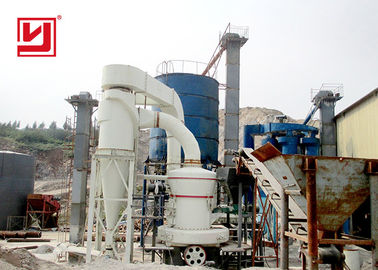

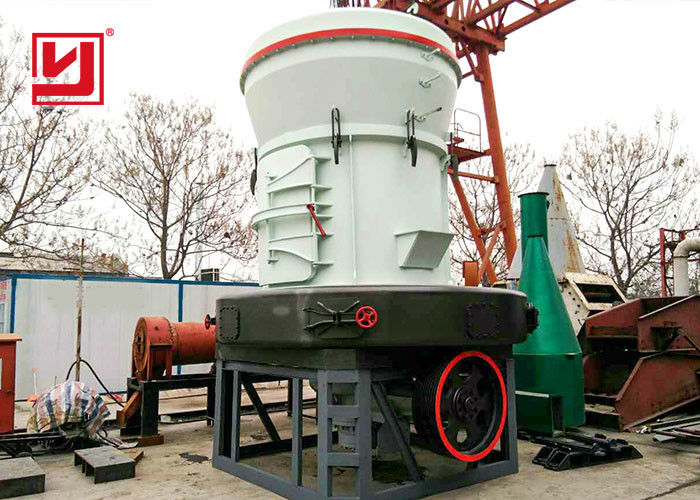

Yuhong Euro Mill Limestone Grinding Mill 65r/min for Mining Industry
Applicable materials:
The MTW European Trapezium Mill can process the non-flammable and non-explosive mineral materials of hardness less than 9 on Moth’s scale, and the humidity less than 6%, such as: quartz, feldspar, calcite, talcum, barites, fluorite, tombarthite, marble, ceramic, bauxite, manganese ore, iron ore, limestone, dolomite, potassium, bentonite, medical stone, rock phosphate, active carbon, carbon black, potassium, coal, etc.
Product Introduction
MTW European Trapezium Mill--- the latest type of Raymond Mill, has become one of the most advanced grinding mills in the world with its so many intellectual properties like bear-gear drive, inner oil lubricating system, arc air channel, etc.
1. Big lump materials are crushed into required size by jaw crusher.
2. The out-let materials are elevated to buffering hopper through elevator.
3. After that the materials are fed into the mill to be ground by ring and rollers.
4. The ground powders move up with the air flow to pass the separator and be collected as the finished product.
5. Those powders failed to pass the separator will fall down and be ground again.
6. Air flow passing through separator will go to the air blower for recycling.
Features
1. Efficient
Bevel gear overall drive reduces noise and increases drive efficiency and capacity.Inner automatic thin-oil lubricating system makes better lubrication for bearings.
2. Economical
Edge-replaceable shovel saves you money and frequency-control separator and cyclone powder collector ensure high capacity.
3. Advanced
Arc air channel reduces energy consumption and intelligent control ensures better operation.
4. Environmentally friendly
Unique air recycling system and dust collector make clean environment.
Technical Data
Model Specification Name | MTW110 | MTW138 | MTW175 | MTW215 |
Quantity of roller (PCS) | 4 | 4 | 5 | 5 |
Inner diameter of ring (mm) | Ф1100 | Ф1380 | Ф1750 | Ф2150 |
Rotary speed of main frame(r/min) | 120 | 96 | 75 | 65 |
Max. Feeding size(mm) | < 30 | < 35 | < 40 | < 50 |
Output size (mm) | 1.6~0.045 The fineness is 0.038 | 1.6~0.045 The fineness is 0.038 | 1.6~0.045 The fineness is 0.038 | 1.6-0.055 The fineness is 0.045 |
capacity (t/h) | 3.5~10 | 6.5~15 | 11~25 | 20-50 |
Overall dimension (mm) | 8910×6950×9010 | 10920×9655×10227 | 12095×10023×9916 | 14500x11200x10400 |
Total weight (t) | 18 | 28.5 | 46 | 96 |
Advantage:
1. The linkage pressure of the rollers,increases single machine processing capacity by 20%
2. Cambered air channel with better material flowability increases the production efficiency by 30%
3. Bevel gear overall drive,low energy consumption, high working efficiency
4. No windage resistance volute low energy consumption, high working efficiency.
5. Initiate reliable inner automatic thin-oil lubricating system
6. Cambered shovel with replaceable edge, which has higher working efficiency and lower cost.
