| Type: | Raymond Mill | Application: | Cement, Coal, Metallurgy |
|---|---|---|---|
| Name: | Yuhong Raymond Grinding Mill | Color: | As Requirement |
| Usage: | Material Grinding | Motor Type: | AC Motor |
| High Light: | raymond vertical mill,raymond roller mill |
||

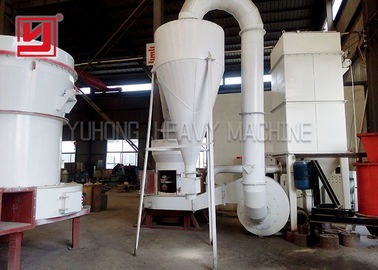

Low price Yuhong grind machine raymond grinding mill with 30kw main motor power
Processed Materials:
Limestone, calcite, barite, dolomite, potassium feldspar, bentonite, medical stone, rock phosphate, manganese ore, iron ore, quartz, active carbon, carbon black, ceramic, coal, etc..
Applications:
Cement, coal , power plant desulfurization, metallurgy, chemical industry, non-metallic mineral, construction material, ceramics.
Technical Parameter:
| Model | Max Feeding Size | Finished Products Size | Shift Output | Inner Diameter of Ring | Diameter of Roller | Height of Roller and Ring | Main Motor Power | Dimensions | Weight |
| (L×W×H) | |||||||||
| (mm) | (mm) | (t/h) | (mm) | (mm) | (mm) | (kw) | (mm) | (kg) | |
| 3R2115 | 15 | 0.125-0.044 | 1-18 | 6460 | 210 | 150 | 15 | 4500*2800*5800 | 3600 |
| 3R3016 | 15-25 | 0.125-0.044 | 3-30 | 910 | 300 | 160 | 30 | 7500*4500*5000 | 7000 |
| 4R2716 | 15-25 | 0.125-0.044 | 3-36 | 830 | 270 | 160 | 22 | 5970*4000*5000 | 3900 |
| 4R3016 | 15-25 | 0.125-0.044 | 3-36 | 910 | 300 | 160 | 30 | 7500*4500*6200 | 7500 |
| 5R4119 | 30 | 0.125-0.044 | 6-75 | 1280 | 410 | 190 | 75 | 7850*8000*9700 | 25700 |
| 6R4525 | 30 | 0.125-0.044 | 10-120 | 1770 | 450 | 250 | 132 | 8850*10500*11000 | 47000 |
Working Principle:

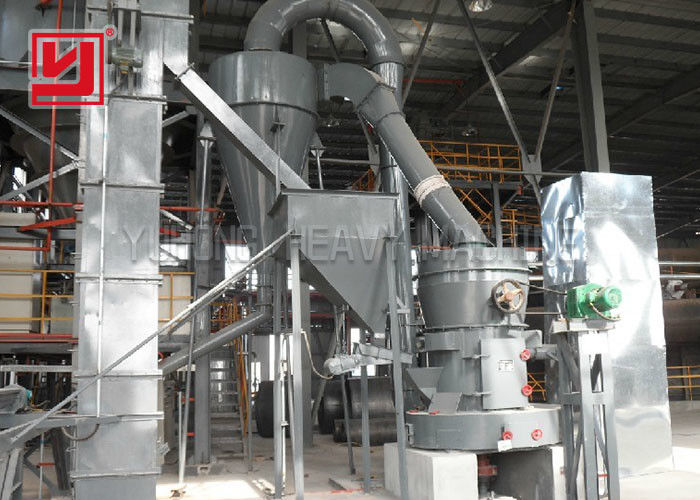

Firstly, raw material is crushed by jaw crusher to the size required, then the crushed materials are elevated into a hopper from which the material is transported through the electro-magnetic vibrating feeder, evenly and continuously into the grinding chamber for powder-processing. The rollers oscillate outward to press the ring because of the centrifugal force and the shovel scoops up the materials, send to the middle between ring and roller to accomplish the grind.
After this, the ground stuff are carried by the air from the blower into the separator for screening. The fine powers are blow into the cyclone collector and are poured out through the output-powder valve as the final products and the rough stuff after the screening will be recycled back into the grinding chamber for regrinding. The set’s airflow system is closely sealed up and circulated under condition of negative and positive pressure.
